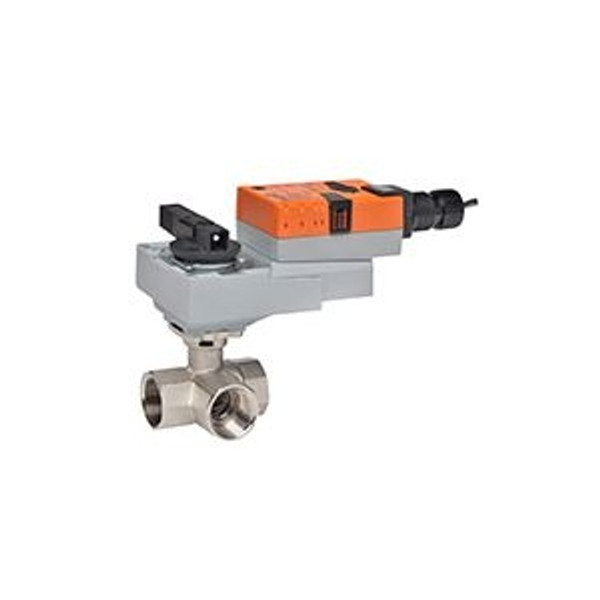

Belimo B348+ARX120-3, 3-way control ball valve Internal thread NPT 2", DN 50, kvs 25
CLICK IMAGE TO ENLARGE
- :Belimo
- :B348-ARX120-3
- :$430.18
- :
- :Usually ships in 2 - 5 business days. To place order, contact info@hvacbrain.com or 216-663-4822
Product Description
Belimo B348+ARX120-3, 3-way control ball valve Internal thread NPT 2, DN 50, kvs 25
3-way control ball valve Internal thread NPT 2, DN 50, kvs 25
3-way control ball valve Internal thread NPT 2, DN 50, kvs 25
- Valve Size 2 [50]
- CV Rating 37.00
- Flow Rating -
- Flow Pattern 3 Way Mixing / Diverting
- Flow Characteristic linear
- Service chilled or hot water, 60% glycol
- Action 75°
- End Fitting NPT female ends
- Material (body) forged Brass, nickel plated
- Material (ball) stainless steel
- Material (plug) -
- Material (disc) -
- Material (stem) stainless steel
- Material (seat) PTFE
- Material (seat O-rings) -
- Material (characterizing disc) Tefzel™
- Media Temp Range (water) 0°F to 250°F [-18°C to +120°C]
- Media Temp Range (steam) -
- Maximum Inlet pressure (steam) -
- Maximum Inlet pressure (water) -
- Leakage 0% for A to AB, <2.0 % for B to AB
- Rangeability -
