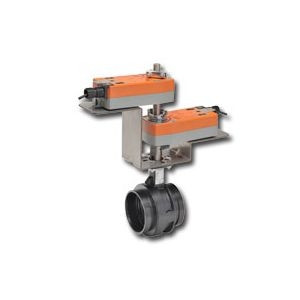

Belimo F750VIC+AFBUP-X1, 3-way Grooved BFV

  • :Belimo
  • :F750VIC-AFBUP-X1
  • :$1,610.94
  • :
  • :Usually ships in 2 - 5 business days. To place order, contact info@hvacbrain.com or 216-663-4822
Qty:
Product Description
Belimo F750VIC+AFBUP-X1, 3-way Grooved BFV
3-way Grooved BFV
  • Valve Size 2 [50]
  • Cv Rating 115
  • Flow Rating -
  • Flow Pattern 2 Way
  • Flow Characteristic modified linear
  • Service chilled, hot water, 60% glycol
  • Action 90° rotation
  • End Fitting Grooved ANSI/AWWA (C606)
  • Material (body) ductile Iron, ASTM A564
  • Material (ball) -
  • Material (plug) -
  • Material (disc) ductile Iron
  • Material (stem) -
  • Material (seat) EPDM
  • Material (seat O-rings) -
  • Material (characterizing disc) -
  • Media Temp Range (water) -30deg;F to +250°F [-34°C to +120°C]
  • Media Temp Range (steam) -
  • Maximum Inlet Pressure (steam) -
  • Maximum Inlet Pressure (water) -
  • Leakage bubble tight shut-off
  • Rangeability 10:1 (for 30° to 70° range)
