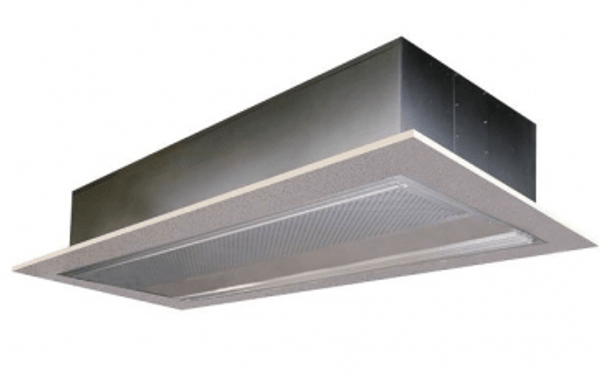

Mars Air Curtains PH1048-1UD-PW, Phantom 48" Unheated, 208/230V, 1PH, Pearl White

Mars Air Curtain PH1048-1UD-PW Overview

The Phantom Series is the choice for architects and designers who need all the performance and protection of a Mars Air Curtain, but need the unit to blend in with the building's internal or external aesthetics. Our Phantom units feature the same top-performing internal components as our 1/2 HP Standard Units, but are enclosed in housing which can be concealed and recess-mounted into a ceiling. The units are quieter and less conspicuous, without sacrificing anything in their ability to do the job required. Standard color for the Phantom Models is Pearl White and heated options are available.

Product Features of PH1048-1UD-PW

• Corrosion Resistant Powder Coated Finish
• Durable Metal Construction
• Durable metal design
• Easy To Install
• Environmental Protection: 10 €™
• Freight included
• Made in USA
• Motor fan assembly
• Recessed in ceiling
• Sleek metal design
• Standard color: Pearl White
• 1/2 hp direct-drive motor

PH1048-1UD-PW Accessories

DOOR SWITCHES
Automatic on/off control of air curtain as door is opened and closed

Line Voltage
- 99-014 Door Limit Switch - Combination roller and plunger - 20 amps, 250v, or 1 hp max.

24-Volt Control
- 99-018   Commercial Magnetic Reed Switch Only - Plastic | Surface-mounted | NOTE: Used with control packages for double doors
- 99-124   Industrial Floor-Mounted Magnetic Reed Switch Only - Floor-mounted | NOTE: Control panel required
- 99-125   Industrial Surface-Mounted Magnetic Reed Switch Only - Surface-mounted | NOTE: Control panel required

CONTROL PACKAGES
Combination packages of door switches, controllers, time delays, and thermostats

Line Voltage
- 99-063   Analog Thermostat - Remote-mounted
- 99-064   Analog Thermostat DPST - Double pole, single throw | Acts as heat on demand | Remote-mounted

24-Volt Control
- J0021   Commercial Magnetic Reed Switch with Controller and Adjustable Time Delay | 115v, 6 sec. - 20 min. | Plastic | Surface-mounted
- J0022   Commercial Magnetic Reed Switch with Adjustable Time Delay |208-230v 1?, 6 sec. - 20 min. | Plastic | Surface-mounted
- J0023   Commercial Magnetic Reed Switch with Controller | 115v, Plastic | Surface-mounted
- J0024   Commercial Magnetic Reed Switch with Controller | 208-230v 1?, Plastic | Surface-mounted
- J0028   Door Limit Switch with Controller and Adjustable Time Delay |115v, 6 sec. - 20 min. | Surface-mounted
- J0029   Door Limit switch with Controller and Adjustable Time Delay |208-230v 1Φ - 6 sec. - 20 min. | Surface-mounted
- J0034   Door Limit Switch with Adjustable Time Delay, 1 sec. - 17 min. | Surface-mounted | NOTE: Control panel required
- J0036   Industrial Magnetic Reed Switch with Controller | 115v, Surface-mounted
- J0037   Industrial Magnetic Reed Switch with Controller | 208-230v 1Φ - Surface-mounted
- J0038   Industrial Magnetic Reed Switch with Controller and Adjustable Time Delay | 115v, 6 sec. - 20 min. | Surface-mounted
- J0039   Industrial Magnetic Reed Switch with Adjustable Time Delay | 115v, 1 sec. - 17 min. | Floor-mounted | NOTE: Control panel required
- J0040   Industrial Magnetic Reed Switch with Adjustable Time Delay, 1 sec. - 17 min. | Surface-mounted | NOTE: Control panel required
- J0042   Industrial Magnetic Reed Switch with Controller and Adjustable Time Delay | 208-230v 1Φ - 6 sec. - 20 min. | Surface-mounted

FILTERS
- STD2-FILTER-[size]   STD2 Aluminum Mesh Filter 1/4’ Internal-mount | Set of 2 | [size]: Specify size in inches

MOTOR CONTROL PANELS
Remote-mounted control panels for all 3Φ units and 1Φ units when greater than 1 hp (NEMA 1) | Units come standard with HOA (hand/off/auto) switch | Panel shipped loose | Standard color Battleship Gray | NOTE: Electric heated units include internal control panel and remote-mounted 24v thermostat with heat/off/fan only switch [vc] Voltage codes: A = 115/1/60 D = 208-230/1/60 G = 208-230/3/60 H = 460/3/60 U = 220/1/50

- MCPA-1U 1-Motor Control Panel ½ hp | Unheated
- MCPA-2U 2-Motor Control Panel ½ hp | Unheated
- MCPA-3U 3-Motor Control Panel 1/2 hp | Unheated
- MCPA-4U 4-Motor Control Panel 1/2 hp | Unheated
- MCPA-5U 5-Motor Control Panel 1/2 hp | Unheated
- MCPA-6U 6-Motor Control Panel 1/2 hp | Unheated
- MCPA-1V 1-Motor Control Panel 1/2 hp | Steam/ Hot Water Heated
- MCPA-2V 2-Motor Control Panel 1/2 hp | Steam/ Hot Water Heated
- MCPA-3V 3-Motor Control Panel 1/2 hp | Steam/ Hot Water Heated
- MCPA-4V 4-Motor Control Panel 1/2 hp | Steam/ Hot Water Heated
- MCPA-5V   5-Motor Control Panel 1/2 hp | Steam/ Hot Water Heated
- MCPA-6V   6-Motor Control Panel 1/2 hp | Steam/ Hot Water Heated

PANEL ADD-ONS
- 94-013   Adjustable Time Delay, 1 sec. - 17 min. | NOTE: Control panel required
- 99-165   Non-fused disconnect | 32 amps, Panel-mounted
- 99-164   Non-fused disconnect | 63 amps, Panel-mounted
- 99-114   Fused disconnect | 32 amps, Panel-mounted
- 99-115   Fused disconnect | 63 amps, Panel-mounted
- MCP-MTD   Factory-Mounted Motor Control Panel
- HL2SPD   2-Speed Motor with Switch Off/Lo/Hi | Panel-mounted switch | NOTE: if 460v power is specified, a separate 115v or 208-230 1Φ service is required
- MSLAV   Master/Slave Control with Single Thermostat

MULTI-SPEED CONTROL OPTIONS
- 99-003   3-Speed Remote switch | 25 amps, Off/Lo/Med/Hi | Up to 1 hp 1Φ
- 99-033   2-Speed Remote Switch | 15 amps, Off/Lo/Hi | Up to 1 hp 1Φ Â
- 99-034   2-Speed Remote Switch | 25 amps, Off/Lo/Hi | Up to 1 hp 1Φ

PH1048-1UD-PW Electrical Drawing
