Siemens 547-301A, BACNET MULTI ROOM MONITOR

Siemens 547-301A,

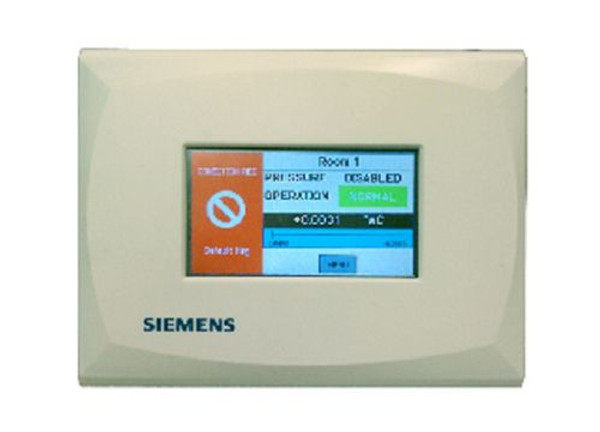

Siemens, MRMS Multi-Room Monitoring Station, BACNET MULTI ROOM MONITOR

Description
The Siemens MRMS (Multi-Room Monitoring Station) is designed for installation in a central location, such as a nurses' station or main control room. It is designed to be flush-mounted to provide remote viewing and alarm monitoring for up to 8 rooms or critical spaces equipped with Siemens Industry's pressure and Room Condition Monitors, such as the Model SRPM or SRCM. The built-in Auto-Discover feature will automatically search and connect to other SRPM and SRCM units through BACnet MS/TP and import all MAC addreSSes, BACnet objects, naming conventions and other setup parameters. A built-in audible and visual alarm and high definition color display alerts users to room status and room condition, while allowing for easy alert of a change in room condition.

Item Specifications

• Features

  Functions

  Benefits

• High resolution color touch-screen display Immediate feedback on room status
  Intuitive graphic interface
• Flush-mount design No visible mounting fasteners
  Snap-in flush bezel
  Face is sealed for cleaning or wipe-down
• Ease of installation Mounts in off-the-shelf electrical gang box
  Four-screw, self-leveling mount
  Labeled, removable termination strips Ease of installation
• Built in Audible and Visual Alarms ?installation via USB port Efficient setup for common SRCM's
• Setup Display Banner User Defined Text for flexible room name
  Room Status: Change room from Isolation to No Isolation Customized to every installation/room
  Local acceSS for fast room type change
• Setup Display Advanced Display Display Contrast
  Display Averaging Display pressure Enable password Change brightneSS of display
  Improve display resolution in unstable ambient pressure environments
  Display primary and secondary or toggle between 2 rooms
  Administrator and Supervisor available.
• Setup Unit Operation Setup primary and secondary room
  Change analog output
  Free form data entry for room name Flexible setup
  Flexible IO
  Flexible room naming
• IP54 Rated OP54 rated against dust and liquid penetration
