Product Overview

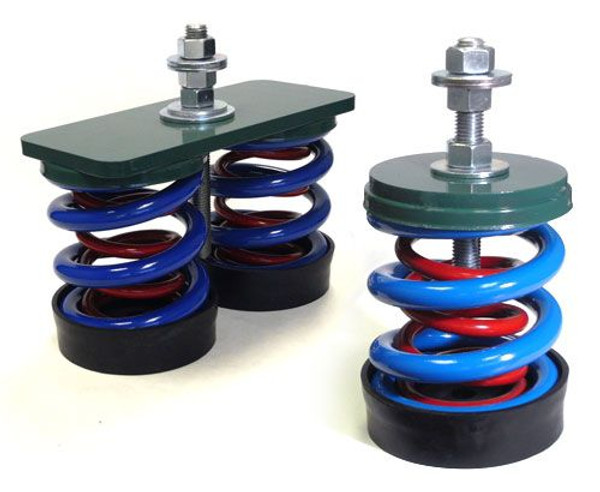

Vibro Acoustics FS-3A-100, 3" (76mm) Deflection FS Free Spring Floor Mounted Isolators, 100 lbs rated load, Black, 3.2 inch deflection at rated load, 11.5 lbs isolator weight. Free standing, laterally stable, unhoused spring type isolator with levelling nuts to position and secure the equipment
Minimum 50% additional travel to solid
Minimum kx/ky ratio of 0.8
All elements safe at solid loading
All hardware zinc-plated, Grade 2 minimum
All springs powder coated
Operating height shown is maximum recommended height.
Minimum 50% additional travel to solid
Minimum kx/ky ratio of 0.8
All elements safe at solid loading
All hardware zinc-plated, Grade 2 minimum
All springs powder coated
Operating height shown is maximum recommended height.
