Amtrol: ST Models: Therm-X-Trol Vertical Thermal Expansion Tanks

Amtrol: ST Models: Therm-X-Trol Vertical Thermal Expansion Tanks Features

  • For use in closed, potable water systems to control pressure build-up.
  • Accepts expanded water as system temperature rises and returns hot water to system when demand occurs.
  • Stand models designed for large residential and light commercial applications.
  • Multiple units can be installed to accommodate larger systems

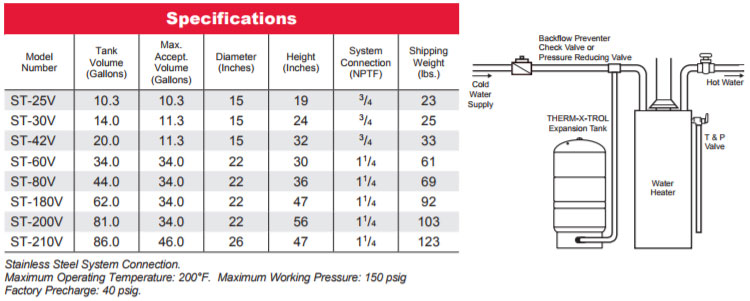

Amtrol: ST Models: Therm-X-Trol Vertical Thermal Expansion Tanks Specifications

Construction

  • Shell: Steel
  • Diaphragm: Heavy Duty Butyl NSF/ANSI 61
  • Liner: Antimicrobial
  • System Connection: Stainless Steel
  • Finish: Urethane Topcoat
  • Water Circulator: Turbulator™
  • Air Valve: Projection Welded
  • Factory Precharge: Stand Models 40 PSIG (2.8 bar)

Performance

  • Maximum Operating Temperature: 200°F (93°C)
  • Maximum Working Pressure: 150 PSIG (10.3 bar)
