Islandaire EZ Series 16 PTCA Thru The Wall Air Conditioner

Islandaire EZ Series 16 is a replacement for the American Air Filter models ofENR,
ENH,WY andYY units. Our commercial duty construction with heavy gauge galvanized
steel and superior components create an efficient reliable unit.This design eliminates
the need for any interior or exterior renovation. Use of the existing wall sleeve-cabinet
and louver saves time and money, two very important factors in today's competitive
environment! If the need does occur where the wall sleeve-cabinet and/or louver needs
to be replaced, we manufacture these accessories as well.		 islandaire-ez16.jpg



FEATURES
  • Proudly Made in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge Galvanized Steel
  • Designed for exact replacement of existing sleeve opening
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide Superior Heat Transfer
  • Units Available as Cooling only, Cooling withElectric Heat, Cooling with
    Hydronic Heat, or Heat Pumps
  • Custom Options Available
  • Available with State-of-the-Art Digital intellitemp™ Control System
  • Left Side Power Connections Available
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E



Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47^FWB outdoor and 70^F DB/60^FWB indoor. Wattage.Amperage. COP. EER listings include compressor, evaporator motor and condenser fan motor.Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95^F DB/75^FWB outdoor and 80^F DB/67^FWB indoor.


Heat and Line Voltage Options:
islandaire-ez16-heating.jpg islandaire-ez16-voltage.jpg
(l)Voltage is Single Phase,Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.

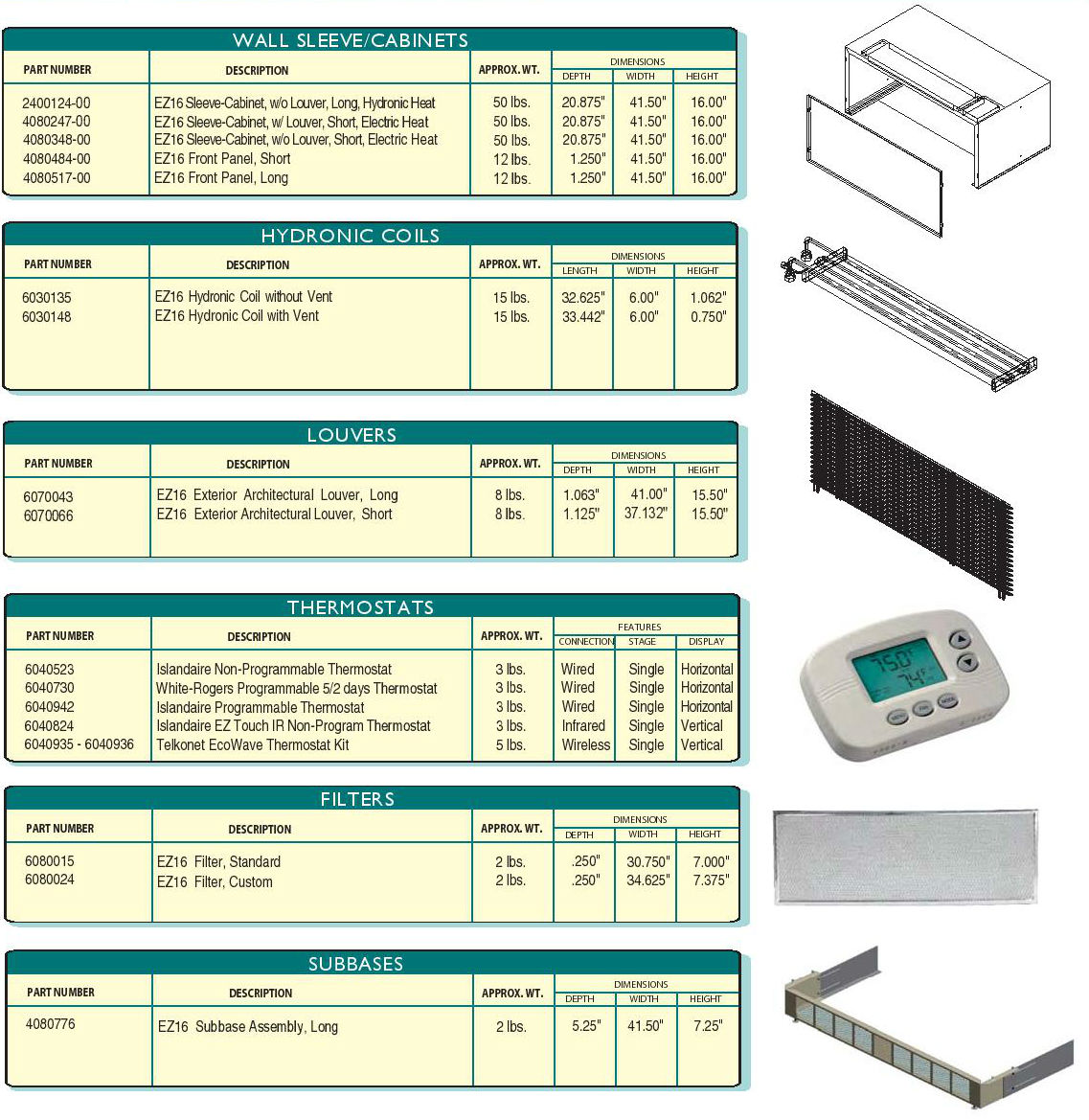

Accessories:


There are no products listed under this category.
