Islandaire EZ Series 40, PTAC (Thru The Wall Air Conditioner)

  Islandaire EZ Series 40 is a replacement for the American Standard
models of Type SR 40 units. Our commercial duty construction with
heavy gauge galvanized steel and superior components create an
efficient reliable unit. This design eliminates the need for any interior
or exterior renovation. Use of the existing wall sleeve-cabinet and
louver saves time and money, two very important factors in today's
competitive environment! Hydronic coil package available. Hydronic

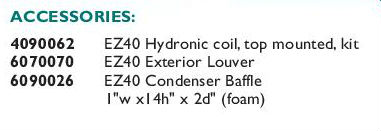

coil must be replaced with Part #: 4090062.

  • Proudly Made in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge
    Galvanized Steel
  • Designed for exact replacement of existing sleeve
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide
    Superior Heat Transfer
  • Units Available as Cooling only, Cooling with Electric
    Heat, Cooling with Hydronic Heat,or Heat Pumps
  • Custom Options Available
  • Available with State-of-the-Art Digital Intellitemp™
    Control System
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E

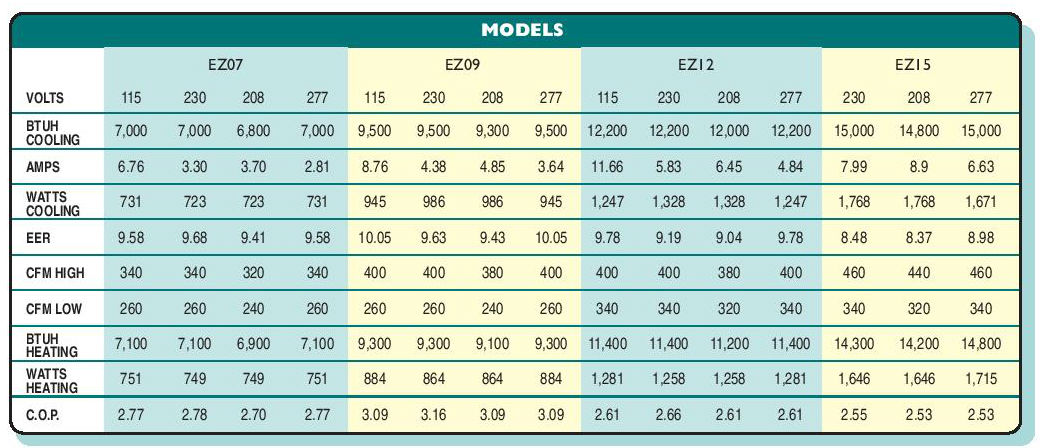

Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47^FWB outdoor and 70^F DB/60^FWB indoor. Wattage.Amperage. COP. EER listings include compressor, evaporator motor and condenser fan motor.Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95^F DB/75^FWB outdoor and 80^F DB/67^FWB indoor.

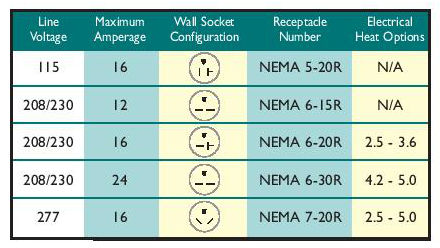

Heat and Line Voltage Options:

islandaire-ez-40-heating.jpg islandaire-ez-40-voltage.jpg

(1)Voltage is Single Phase,Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.
