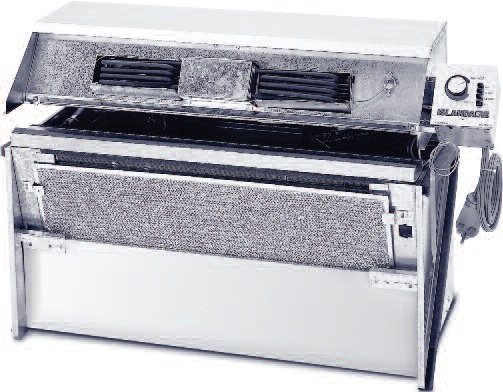

Islandaire EZ Series 41, PTAC (Thru The Wall Air Conditioner)

  Islandaire EZ Series 41 is a replacement for the Singer, Remington
and American Standard models of TW Series Type 41 Remotaire units. Our
commercial duty construction with heavy gauge galvanized steel and superior
components create an efficient reliable unit.This design eliminates the need for
any interior or exterior renovation. Use of the existing wall sleeve-cabinet and
louver saves time and money, two very important factors in today's competitive
environment! If the need does occur where the wall sleeve-room cabinet and/or
louver needs to be replaced, we manufacture these accessories as well.
FEATURES
  • Proudly Made in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge Galvanized Steel
  • Designed for exact replacement of existing sleeve opening
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide Superior
    Heat Transfer
  • Units Available as Cooling only, Cooling with Electric Heat,
    Cooling with Hydronic Heat,or Heat Pumps
  • Custom Options Available
  • Available with State-of-the-Art Digital Inteiiitemp™
    Control System
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E

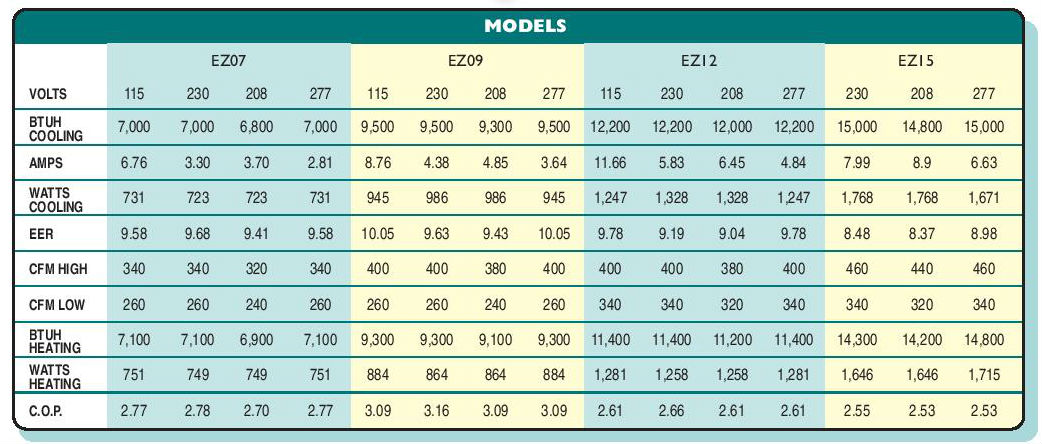

Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47^FWB outdoor and 70^F DB/60^FWB indoor. Wattage.Amperage. COP. EER listings include compressor, evaporator motor and condenser fan motor.Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95^F DB/75^FWB outdoor and 80^F DB/67^FWB indoor.

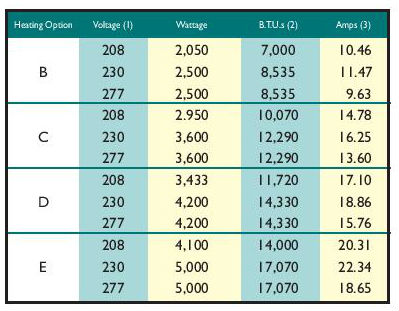

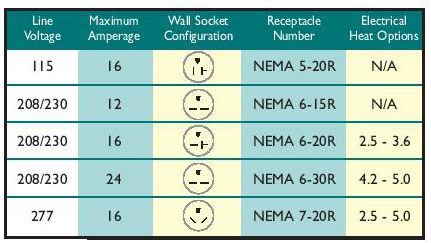

Heat and Line Voltage Options:

islandaire-ez-41-heating.jpg islandaire-ez-41-voltage.jpg


(1)Voltage is Single Phase,Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.
