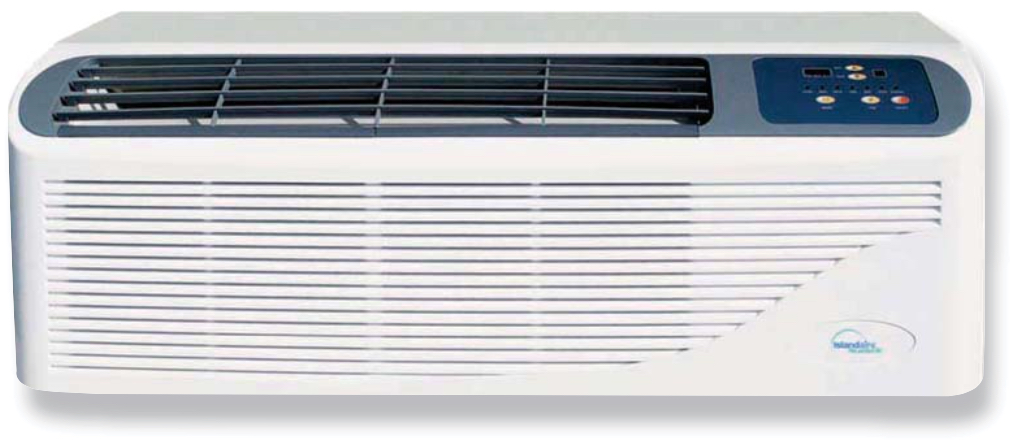

Islandaire EZ Series 42, PTAC (Thru The Wall Air Conditioner)



Two stage electric heat available for energy savings!!

The EZ Series 42 units are designed and manufactured for new
construction or the replacement of existing Amana, GE, LG,
Friedrich, Gree, Trane and all other 42" by 16" PTACs & PTHPs
.
The product is designed for individually-zoned comfort controlled
heating and cooling. The unit width is an industry standard 42”.
We offer our cooling chassis to operate with cooling only or heat
pump with back up electric heat, or just straight electric heat.
The design standards, heavy duty construction and the focus on
indoor noise reduction has created our unit as the premier unit of
the future. Standard warranty is a one year parts and labor including
a five year sealed system part only warranty or a two year parts only
including a five year sealed system part only warranty.



FEATURES:
  • Dual fan motors
  • Quiet and energy-efficient compressor.
  • Superior temperature control
  • Dehumidification of air
  • Modern and elegant appearance
  • Washable filter for easy cleaning
  • User friendly control panel, remote
    controller and wired thermostat
  • Compressor freeze protection
  • Fresh air intake
  • Start-up time delay
  • Room side freeze protection
  • Selfdiagnosis
  • Auto Start

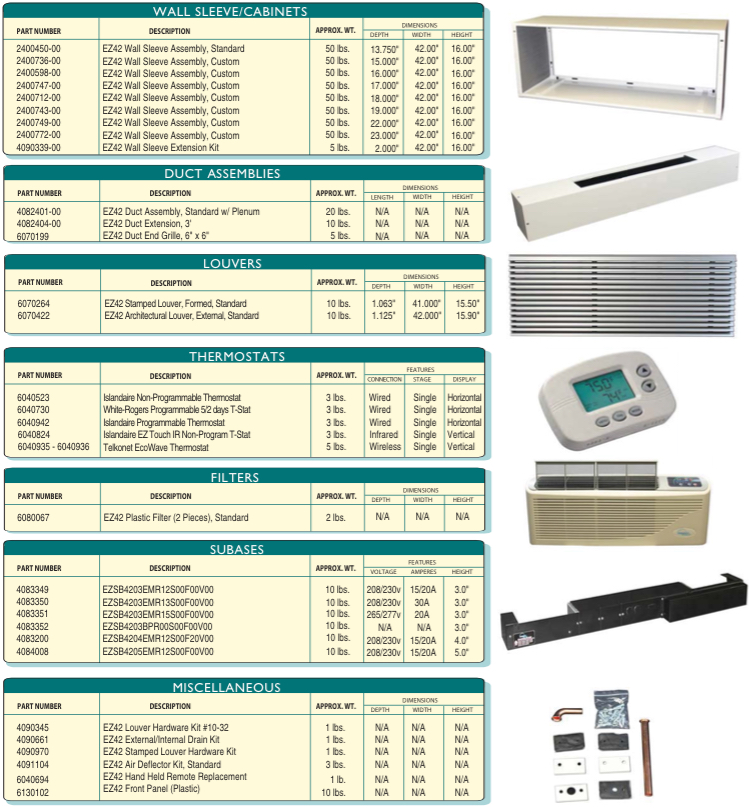

ACCESSORIES:
  • Condensate removal kit
  • Architectural Louver
  • 18 gauge insulated wall sleeve
  • Wired remote thermostat
  • Wireless remote thermostat
  • I.R. motion sensor
  • Door switch
  • Sub-base kit
  • Electrical sub-base kit
  • Duct kit
  • Locking control cove

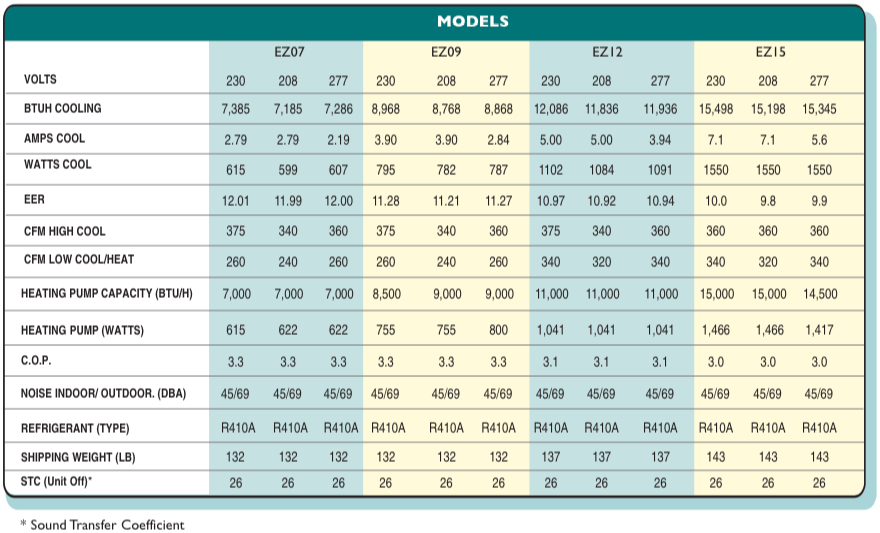

Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47°F WB outdoor and 70°F DB/60°F WB indoor. Wattage, Amperage,, COP, FFR listings include compressor, evaporator motor and condenser fan motor. Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95°F DB/75°F WB outdoor and 80°F DB/67°F WB indoor.

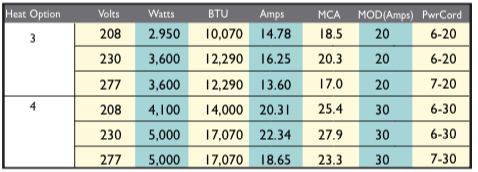

Heat and Line Voltage Options:






(1) Voltage is Single Phase, Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.


EZ 42 Optional 2 Stage Heaters for 208/230 volt units must use a 2 stage wall thermostat
