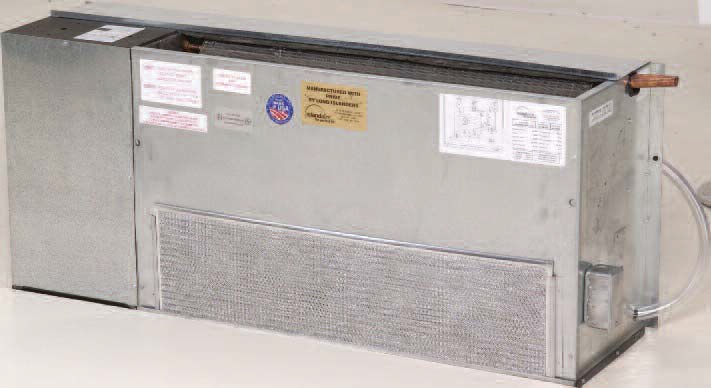

Islandaire EZ Series 81, Water Source Heat Pump

  Console Water Source Heat Pump Replaces Climate Master 801 Series

Islandaire "The Perfect Fit” units are designed to exactly replace
the original, existing chassis! No field modification kits or builder
renovations are required. Islandaire units are designed for
optimal efficiency and reliability.

This appliance is intended for new construction or replacement
of Climate Master 801 water source heat pumps. Please confirm

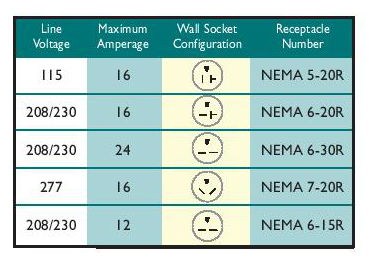

that the electrical rating of this appliance matches the electrical
supply available before beginning installation.




Features on the EZ Series 81:
  • Proudly made in the U.S.A
  • Superior energy efficient ratios (EER)
  • High efficiency coaxial condenser coil
  • High efficiency evaporator coil
  • Commercial duty construction with heavy gauge galvanized steel
  • High pressure protection
  • Compressor and water circuit freeze protection
  • Refrigerant circuit access ports


Slide the old 81 unit out, slide "The Perfect Fit" Islandaire unit in! No Renovations!


Note:

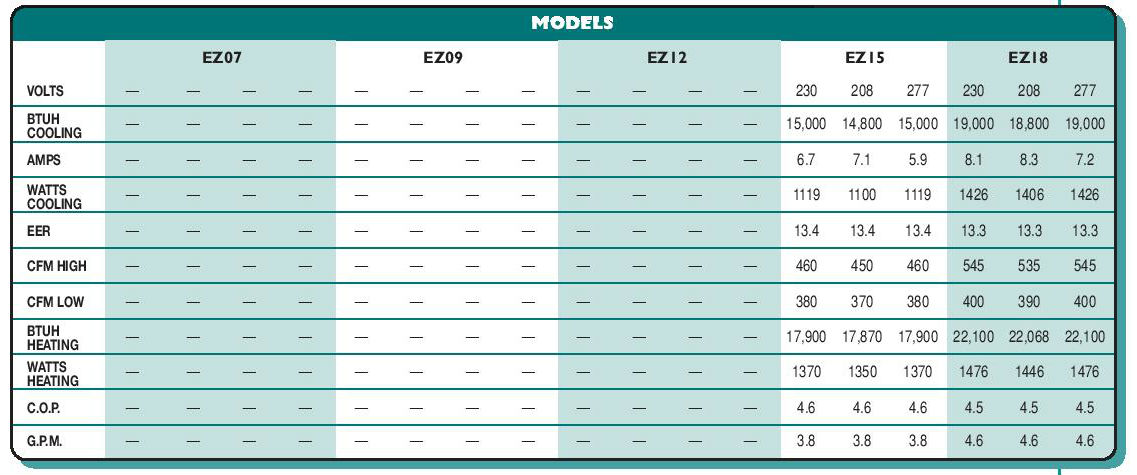

1) Data based on AHRI/ASHRAE/ISO 13256-1

Cooling -
  • EAT-80.6 degrees F
  • DB\66.2 degrees F WB
  • EWT-86 degrees F
Heating -
  • EAT-68 degrees F
  • EWT-68 degrees F

2) Water Loop Operation


Specifications are subject to change due to ongoing product development
