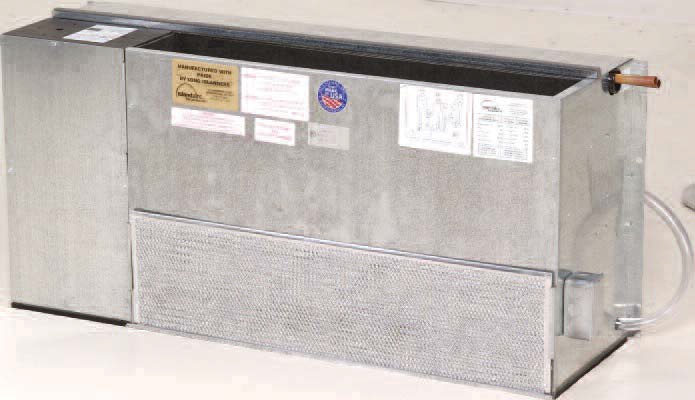

Islandaire EZ Series 8S, Water Source Heat Pump


Console Water Source Heat Pump Replaces Climate Master 801 Small Series

  Islandaire "The Perfect Fit” units are designed to exactly replace the
original, existing chassis! No field modification kits or builder
renovations are required. Islandaire units are designed for optimal
efficiency and reliability.

This appliance is intended for new construction or replacement of
Climate Master 8S water source heat pumps. Please confirm that the

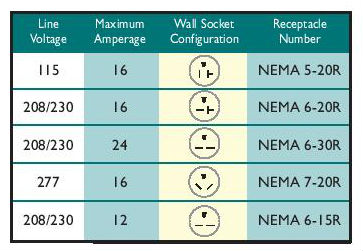

electrical rating of this appliance matches the electrical supply
available before beginning installation.
Features on the EZ Series 8S:

  • Proudly made in the U.S.A
  • Superior energy efficient ratios (EER)
  • High efficiency coaxial condenser coil
  • High efficiency evaporator coil
  • Commercial duty construction with heavy gauge galvanized steel
  • High pressure protection
  • Compressor and water circuit freeze protection
  • Refrigerant circuit access ports

Slide the old 8S unit out, slide "The Perfect Fit" Islandaire unit in! No Renovations!



Note:

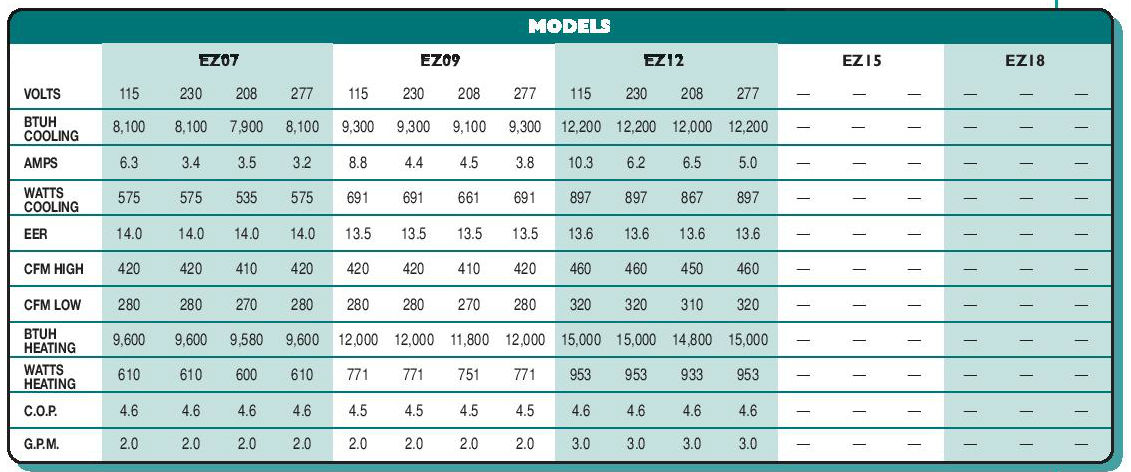

1) Data based on AHRI/ASHRAE/ISO 13256-1

Cooling -
  • EAT-80.6 degrees F
  • DB\66.2 degrees F WB
  • EWT-86 degrees F

Heating -
  • EAT-68 degrees F
  • EWT-68 degrees F

2) Water Loop Operation



Specifications are subject to change due to ongoing product development.
