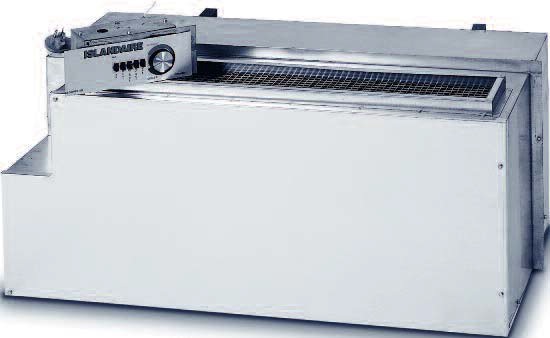

Islandaire EZ Series AD, PTAC (Thru The Wall Air Conditioner)



  Islandaire EZ Series AD is a replacement for the Friedrich Climate
Master and Weil-McLain models of 700AD units. Our commercial duty
construction with heavy gauge galvanized steel and superior components
create an efficient reliable unit.This design eliminates the need for any
interior or exterior renovation. Use of the existing wall sleeve- cabinet
and louver saves time and money, two very important factors in today's
competitive environment! If the need does occur where the room cabinet
needs to be replaced, we manufacture them, as well as a square or
rectangle control box.



FEATURES:

  • Proudly Made in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge Galvanized
    Steel
  • Designed for exact replacement of existing sleeve opening
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide Superior
    Heat Transfer
  • Units Available as Cooling only, Cooling with Electric Heat,
    Cooling with Hydronic Heat, or Heat Pumps
  • Custom Options Available
  • Available with State-of-the-Art Digital Inteiiitemp™ Control System
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E

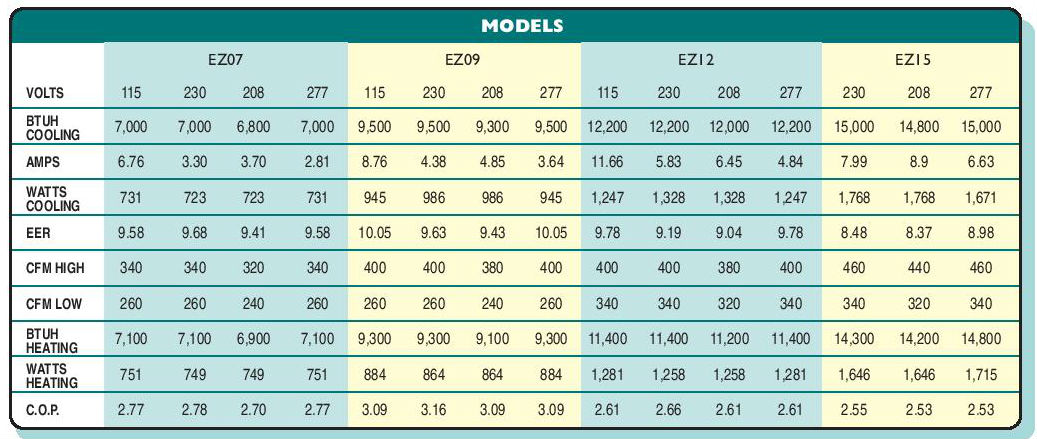

Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47^FWB outdoor and 70^F DB/60^FWB indoor. Wattage.Amperage. COP. EER listings include compressor, evaporator motor and condenser fan motor.Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95^F DB/75^FWB outdoor and 80^F DB/67^FWB indoor.

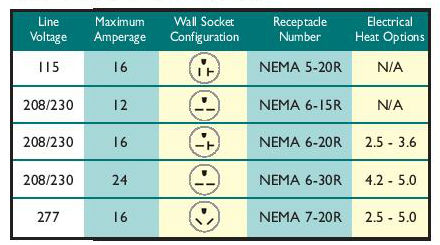

Heat and Line Voltage Options:



(l)Voltage is Single Phase.Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.

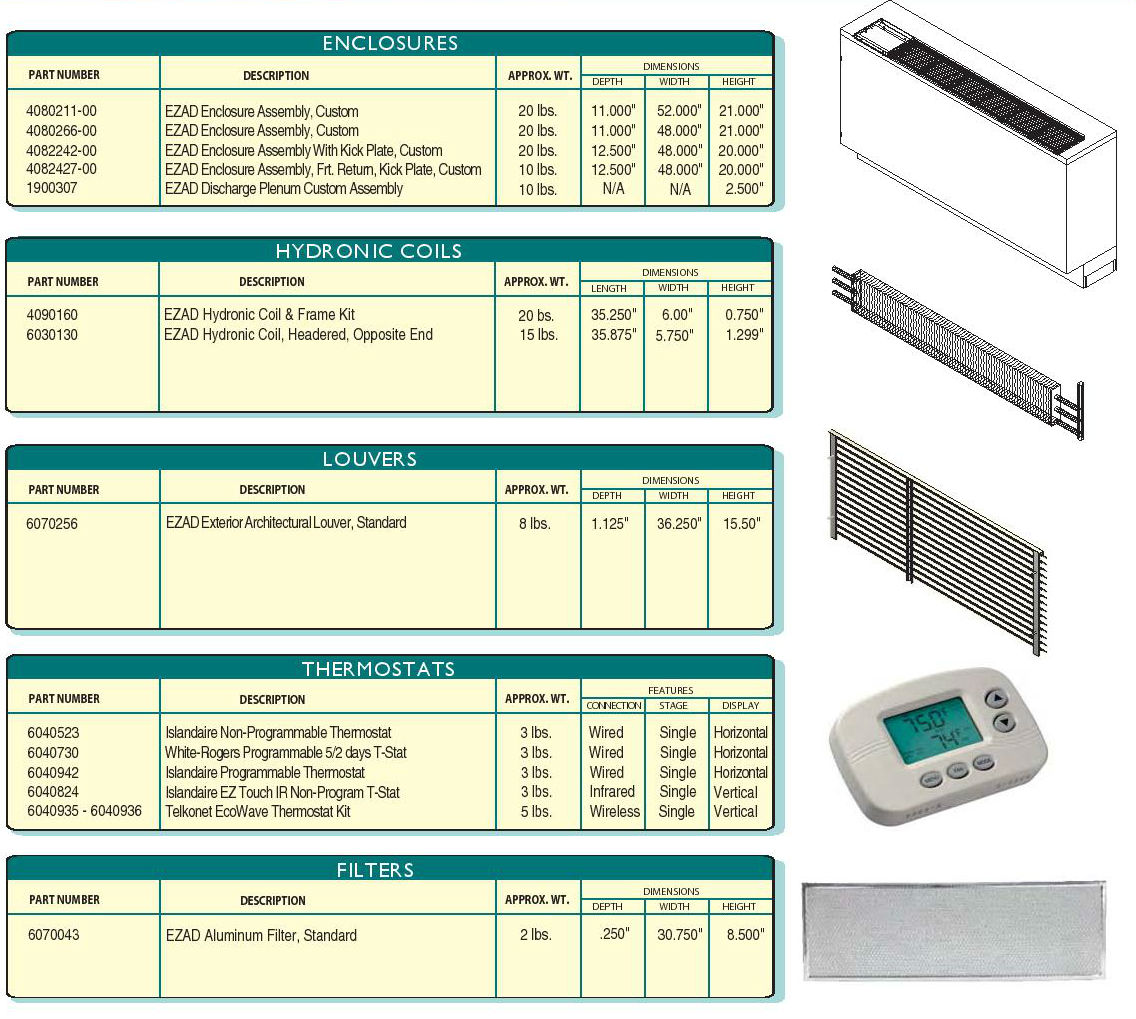

Accessories:
