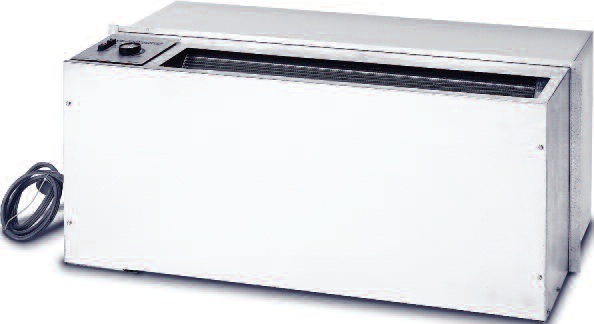

Islandaire EZ Series CC, PTAC (Thru The Wall Air Conditioner)

  Islandaire EZ Series CC is a replacement for the Slant Fin Climate
Command Series units. Our commercial duty construction with
heavy gauge galvanized steel and superior components create an
efficient reliable unit. This design eliminates the need for any interior
or exterior renovation. Use of the existing wall sleeve-cabinet
and louver saves time and money, two very important factors in today's
competitive environment! If the need does occur where the room
cabinet and/or louver needs to be replaced, we manufacture these
accessories as well.



FEATURES:

  • Proudly Made in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge Galvanized Steel
  • Designed for exact replacement of existing sleeve opening
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide Superior Heat Transfer
  • Units Available as Cooling only, Cooling with Electric Heat, Cooling with
    Hydronic Heat, or Heat Pumps
  • Custom Options Available
  • Available with State-of-the-Art Digital Intellitemp™ Control System
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E

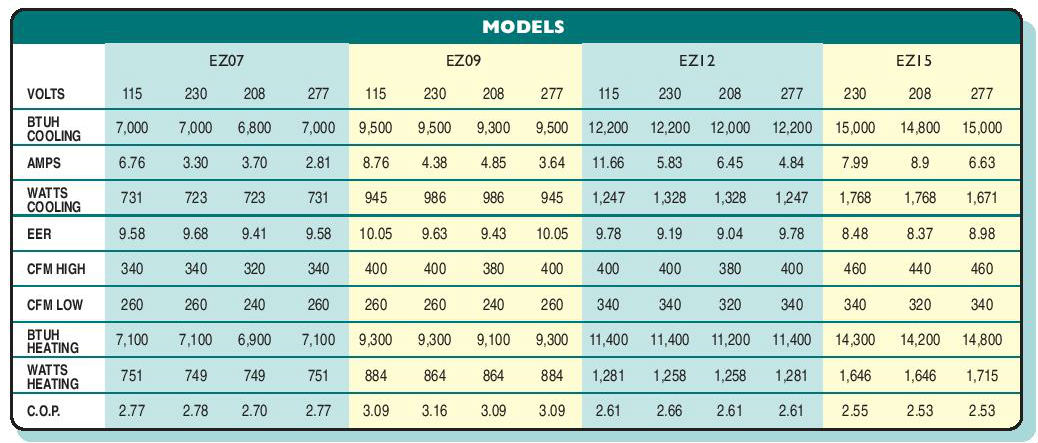

Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47MFWB outdoor and 70MF DB/60MFWB indoor. Wattage, Amperage, COP. EER listings include compressor, evaporator motor and condenser fan motor. Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95MF DB/75MF WB outdoor and 80MF DB/67MF WB indoor.

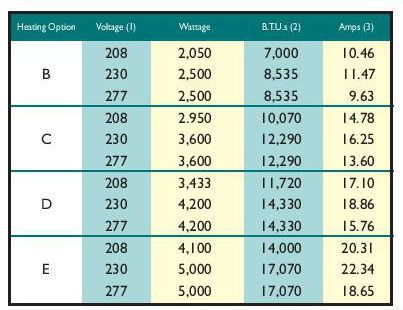

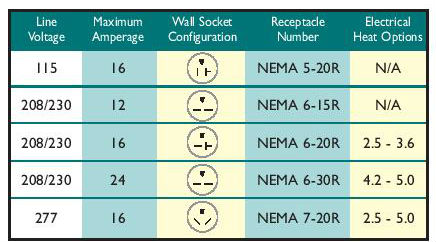

Heat and Line Voltage Options:

islandaire-ez-cc-heating.jpg islandaire-ez-cc-voltage.jpg


(1) Voltage is Single Phase, Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.
