Islandaire EZ Series CH, PTAC (Thru The Wall Air Conditioner)



  Islandaire EZ Series CH is a replacement for the Space Command
Chromalox Upflow and Downflow units. Our commercial duty
construction with heavy gauge galvanized steel and superior
components create an efficient reliable unit. This design eliminates
the need for any interior or exterior renovation. Use of the existing wall
sleeve-cabinet and louver saves time and money, two very important
factors in today's competitive environment! Note: Downflow version
available in remote thermostat only.



FEATURES:

  • Proudly Made in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge
    Galvanized Steel
  • Designed for exact replacement of existing sleeve
    opening
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide
    Superior HeatTransfer
  • UnitsAvailable as Cooling only, Cooling with Electric Heat,
    Cooling with Hydronic Heat, or Heat Pumps
  • Custom Options Available
  • Available with State-of-the-Art Digital Intellitemp™ Control System
  • Available with wired and wireless wall thermostats

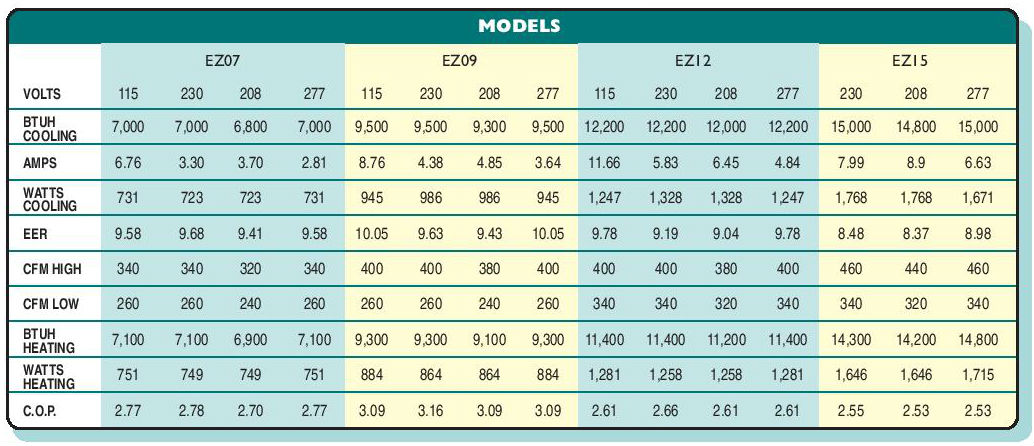

Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47MFWB outdoor and 70MF DB/60MFWB indoor. Wattage.Amperage. COP. EER listings include compressor, evaporator motor and condenser fan motor. Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95MF DB/75MF WB outdoor and 80MF DB/67MF WB indoor.

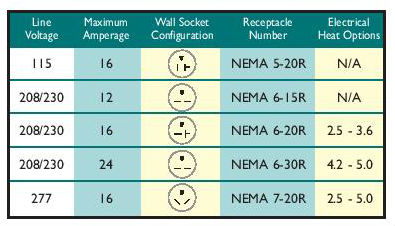

Heat and Line Voltage Options:

islandaire-ez-ch-heating.jpg islandaire-ez-ch-voltage.jpg



(1) Voltage is Single Phase, Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.
