Islandaire EZ Series CM, PTAC (Thru The Wall Air Conditioner)



  Islandaire EZ Series CM is a replacement for the Friedrich and
Weil-McLain models of Series 702, 703 & 704 units. Our commercial duty
construction with heavy gauge galvanized steel and superior
components create an efficient reliable unit. This design eliminates the
need for any interior or exterior renovation. Use of the existing wall
sleeve-cabinet and louver saves time and money, two very important
factors in today's competitive environment! If the need does occur where
the room cabinet and/or louver needs to be replaced, we manufacture
these accessories as well.



FEATURES:

  • Proudly Made in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge
    Galvanized Steel
  • Designed for exact replacement of existing sleeve opening
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide Superior
    Heat Transfer
  • Units Available as Cooling only, Cooling with Electric Heat,
    Cooling with Hydronic Heat, or Heat Pumps
  • Custom Options Available
  • Available with State-of-the-Art Digital Inteiiitemp™ Control
    System
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E

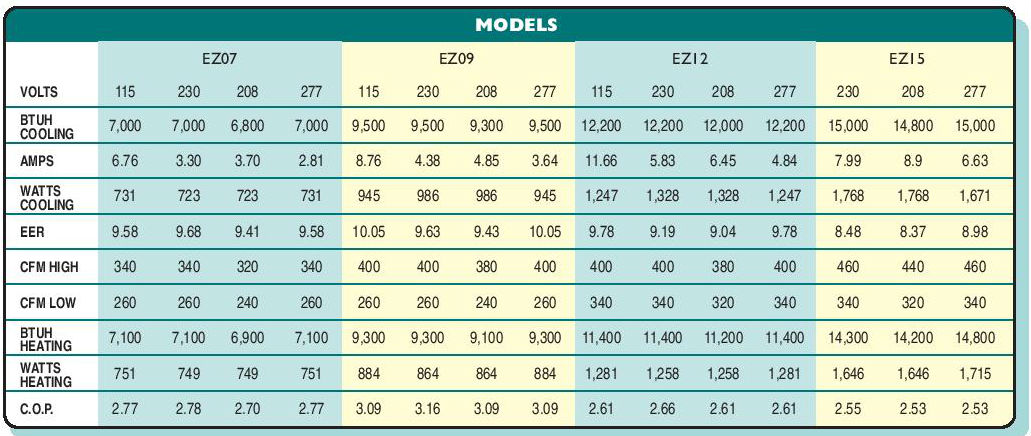

Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47MFWB outdoor and 70MF DB/60MFWB indoor. Wattage,Amperage, COP. EER listings include compressor, evaporator motor and condenser fan motor. Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95MF DB/75MF WB outdoor and 80MF DB/67MF WB indoor.

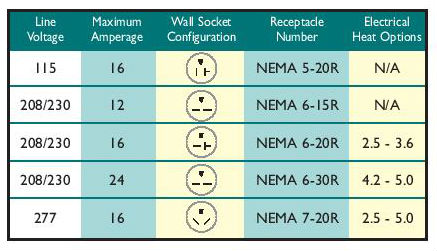

Heat and Line Voltage Options:

islandaire-ez-cm-heating.jpg islandaire-ez-cm-voltage.jpg


(1) Voltage is Single Phase, Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.

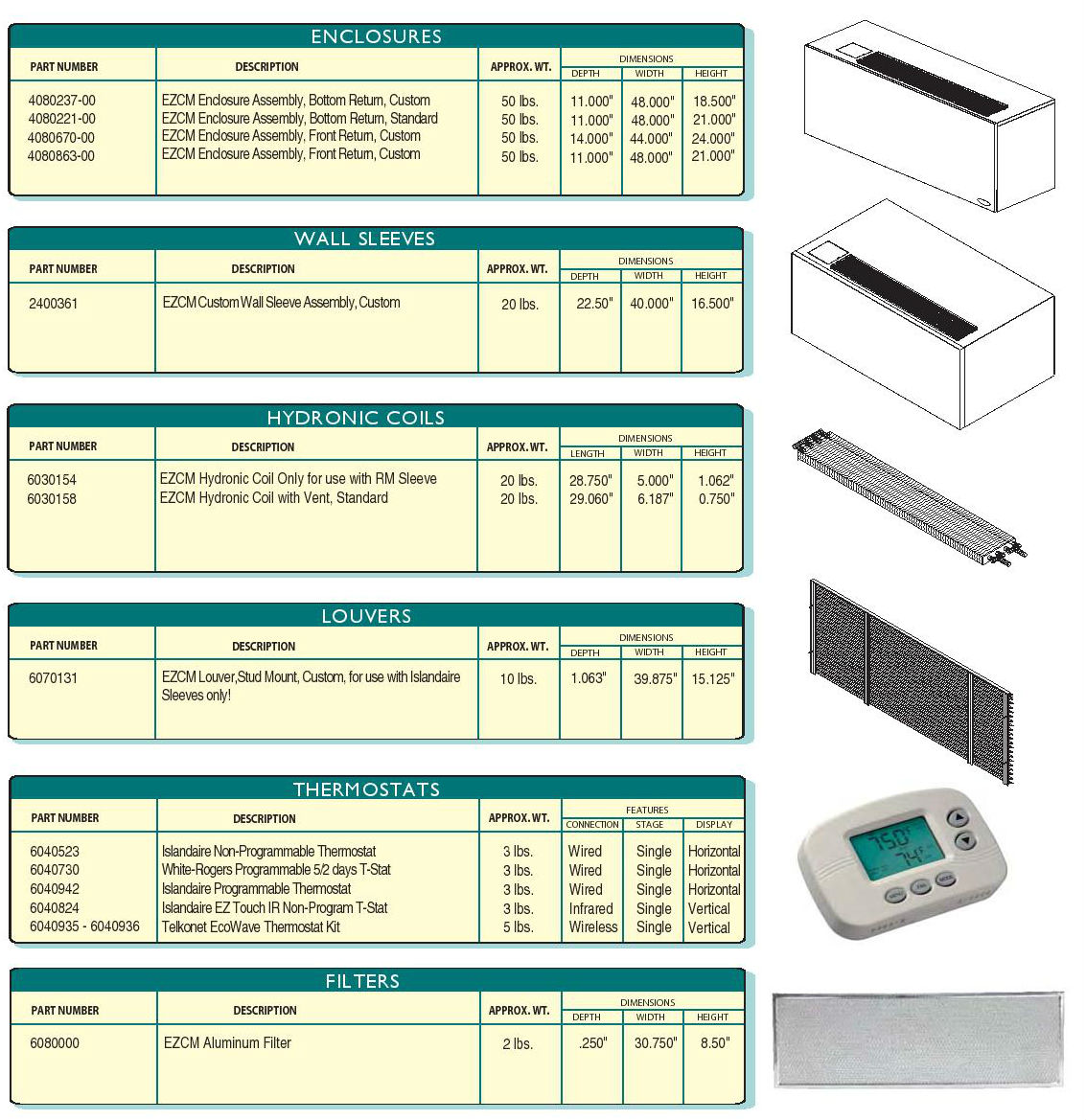

Accessories:

    There are no products in this category.
