Islandaire EZ Series CS, PTAC (Thru The Wall Air Conditioner)



  Islandaire EZ Series CS is a replacement for the Applied Comfort, Carrier
51PH Wallmate Series, Mc Quay TPW Series, Keeprite Seasonall, Heil
Quaker Series C and Zoneaire CSM & CHP units. Our commercial duty
construction with heavy gauge galvanized steel and superior components
create an efficient reliable unit. This design eliminates the need for any
interior or exterior renovation. Use of the existing wall and louver saves
time and money, two very important factors in today's competitive
environment! Sloped front panel, motorized vent and fan cycle switch
included. If the need does occur where the wall sleeve, duct kit and/or
stamped steel or architectural louver needs to be replaced, we
manufacture these accessories as well.




FEATURES:

  • Proudly Made in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge
    Galvanized Steel
  • Designed for exact replacement of existing sleeve
    opening
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide
    Superior Heat Transfer
  • Units Available as Cooling only, Cooling with Electric Heat,
    Cooling with Hydronic Heat, or Heat Pumps
  • Custom Options Available
  • Available with State-of-the-Art Digital Inteiiitemp™ Control
    System
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E

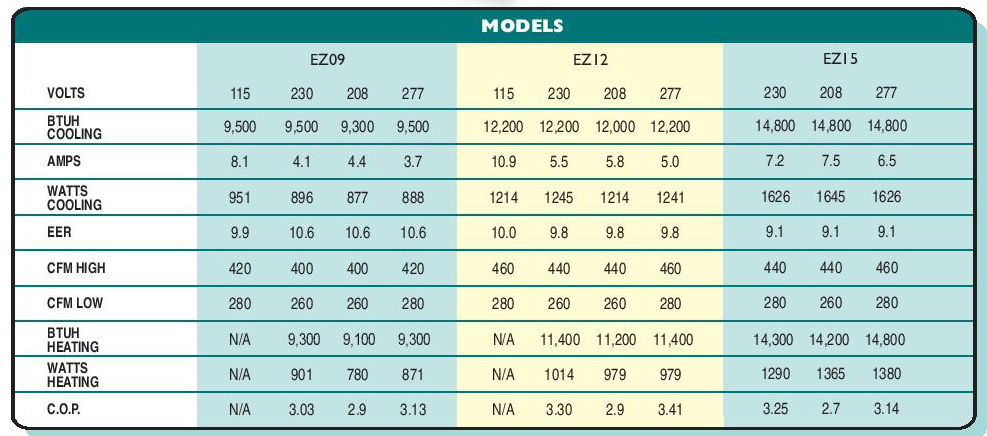

Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47^FWB outdoor and 70^F DB/60^FWB indoor. Wattage,Amperage, COP. EER listings include compressor, evaporator motor and condenser fan motor.Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95^F DB/75^FWB outdoor and 80^F DB/67^FWB indoor.

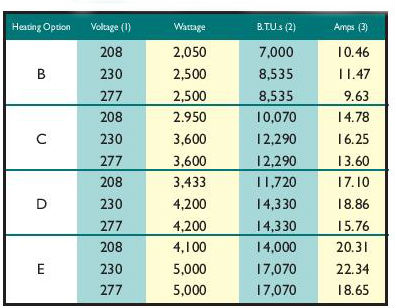

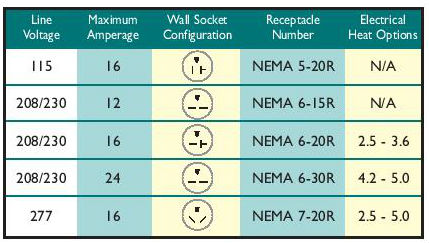

Heat and Line Voltage Options:

islandaire-ez-cs-heating.jpg islandaire-ez-cs-voltage.jpg


(l)Voltage is Single Phase.Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.

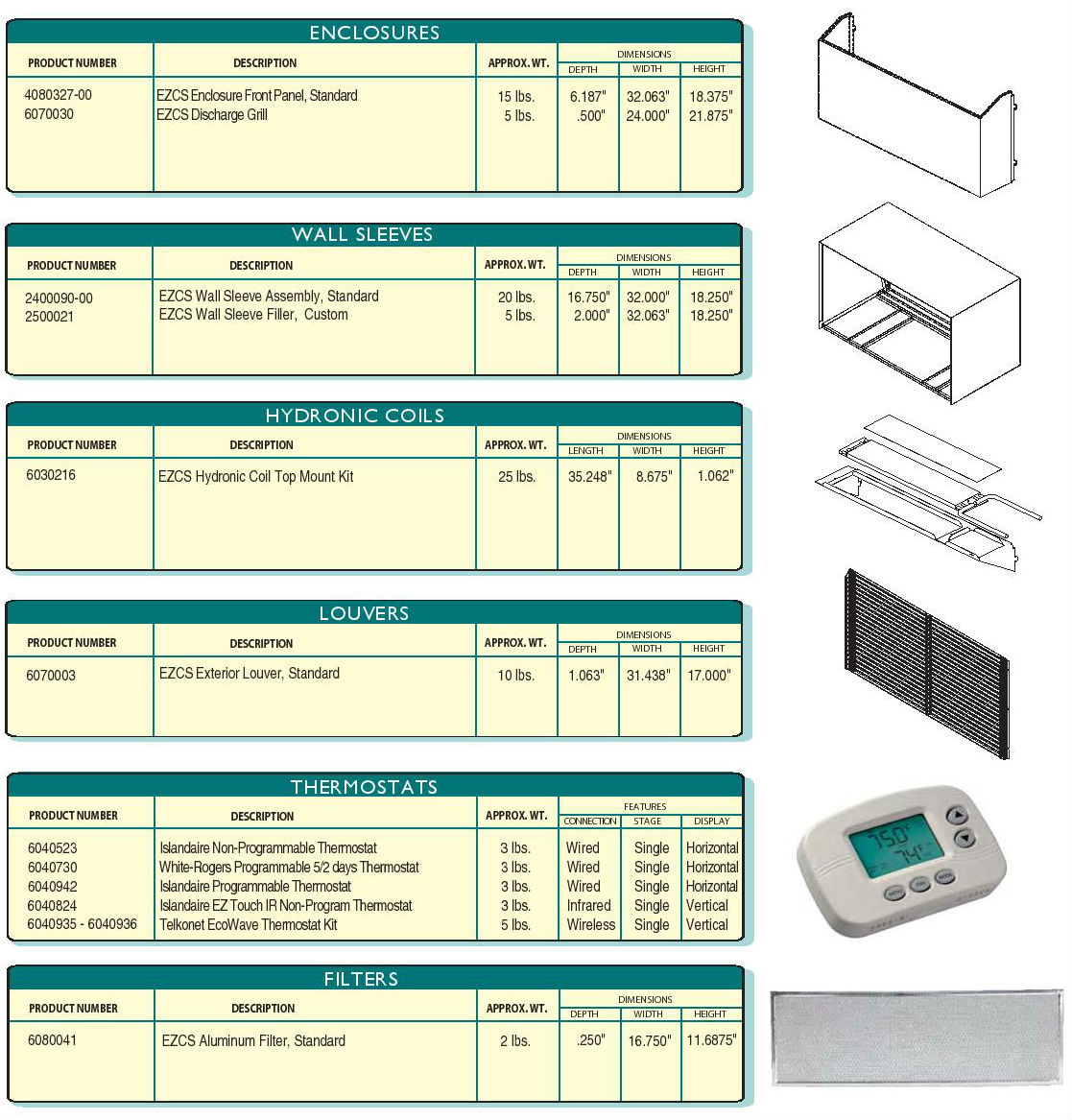

Accessories:
