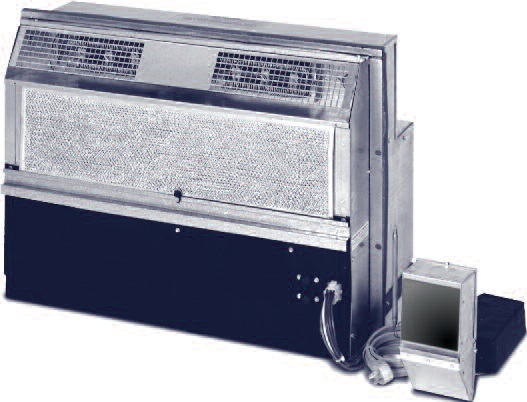

Islandaire EZ Series EB, PTAC (Thru The Wall Air Conditioner)



  Islandaire EZ Series EB is a replacement for the Singer and McQuay models of EB
units. Our commercial duty construction with heavy gauge galvanized steel and
superior components create an efficient reliable unit. This design eliminates the
need for any interior or exterior renovation. Use of the existing wall sleeve-cabinet
and louver saves time and money, two very important factors in today's competitive
environment! Reciprocating compressor only. Digital controls only.




FEATURES:

  • Proudly Made in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge
    Galvanized Steel
  • Designed for exact replacement of existing sleeve
    opening
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide
    Superior Heat Transfer
  • Units Available as Cooling only, Cooling with Electric Heat, Cooling with
    Hydronic Heat, or Heat Pumps
  • Custom Options Available
  • Available with State-of-the-Art Digital Inteiiitemp™ Control System
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E

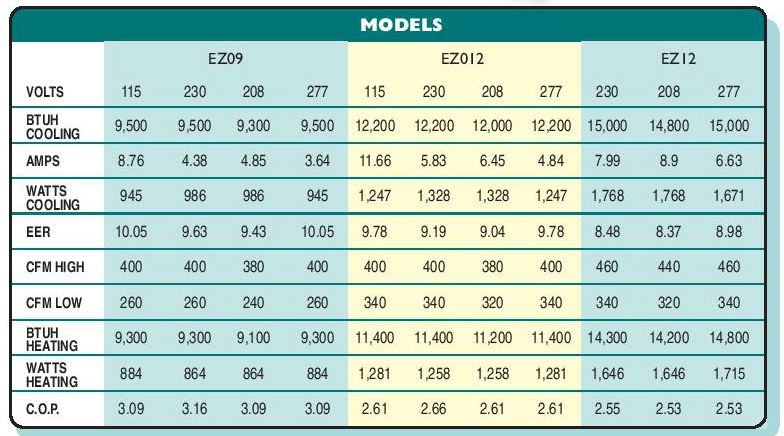

Heating capacities specified in accordance withARI standard 380-82 at conditions of 47^FWB outdoor and 70^F DB/60^FWB indoor. Wattage,Amperage, COP. EER listings include compressor evaporator motor and condenser fan motor. Cooling capacities specified in accordance withARI standard 380-82 at conditions of 95^F DB/75^F WB outdoor and 80^F DB/67^F WB indoor

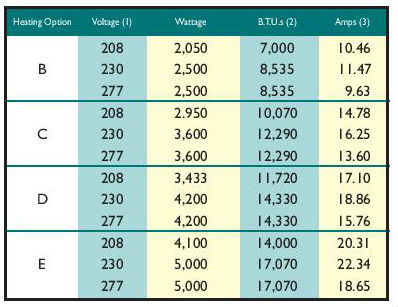

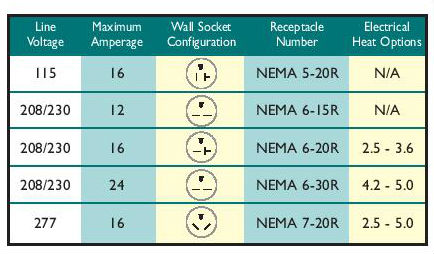

Heat and Line Voltage Options:

islandaire-ez-eb-heating.jpg islandaire-ez-eb-voltage.jpg


(1) Voltage is Single Phase,Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.
