Islandaire EZ Series EC, PTAC (Thru The Wall Air Conditioner)
|Islandaire EZ Series EC is a replacement for the Singer and McQuay
models of C/EC units. Our commercial duty construction with heavy gauge
galvanized steel and superior components create an efficient reliable unit.
This design eliminates the need for any interior or exterior renovation. Use
of the existing wall sleeve-cabinet and louver saves time and money, two
very important factors in today's competitive environment! If the need does
occur where the wall sleeve-cabinet and/or louver needs to be replaced,

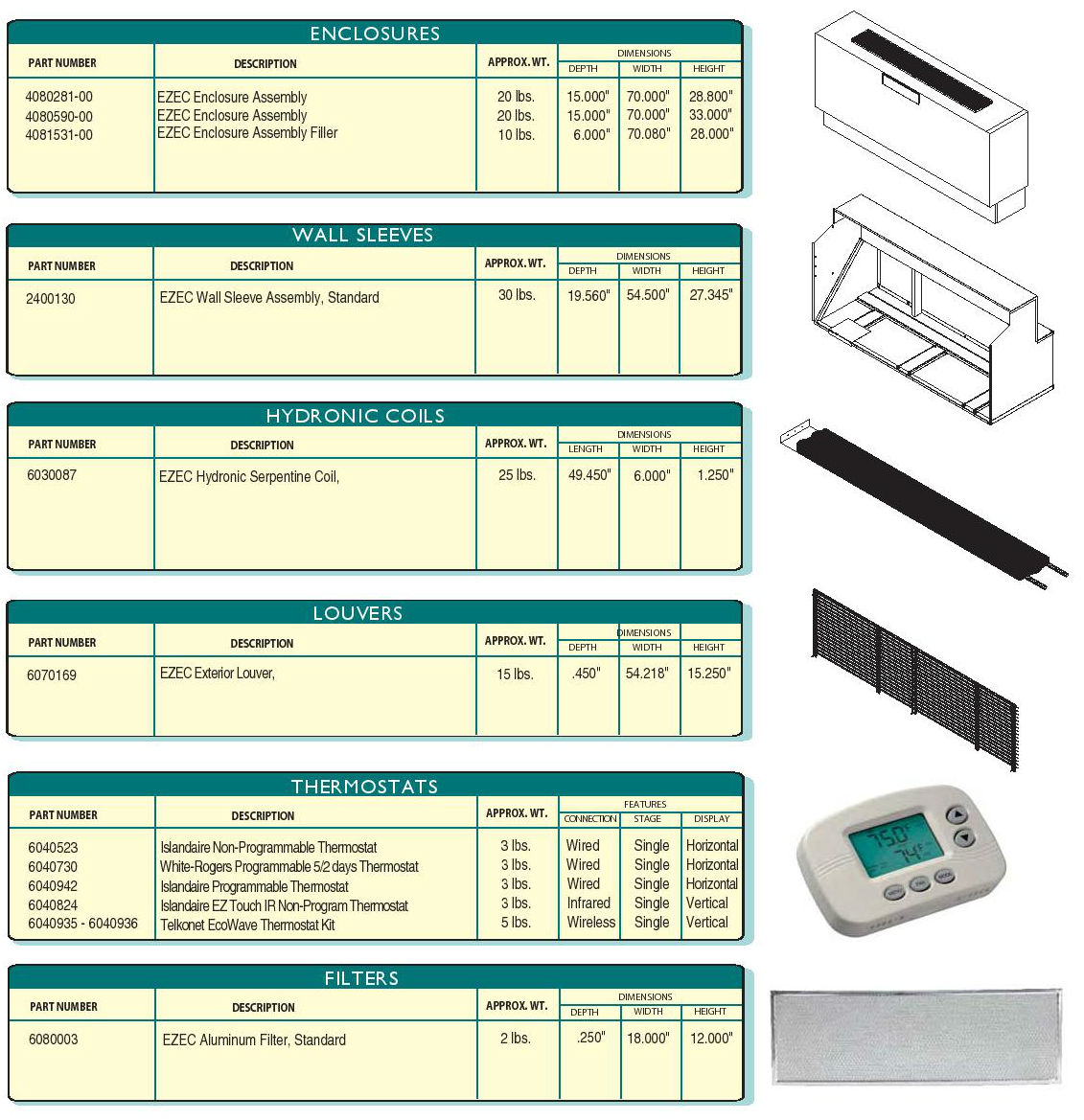

we manufacture these accessories. Mounted controls are auto change
over. MUST ORDER UNIT COMPLETE!

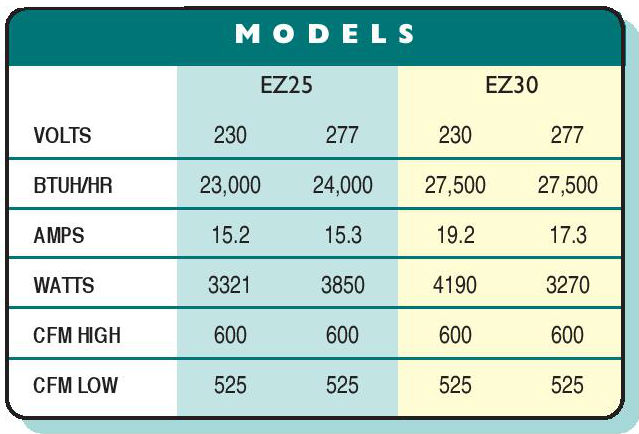

Wattage, Amperage, listings include compressor, evaporator motor and condenser fan motor. Cooling capacities specified in accordance with ARI standard 380-93 at conditions of 95°F DB/75T WB outdoor and 80°F DB/67T WB indoor.

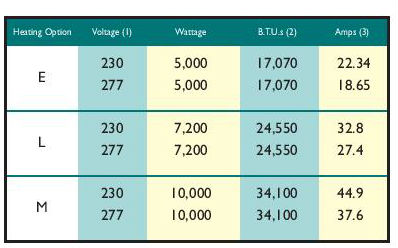

(1) Voltage is Single Phase, Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.
