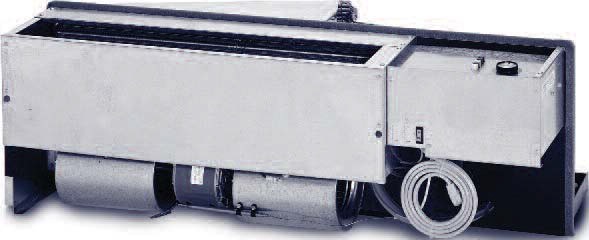

Islandaire EZ Series ED, PTAC (Thru The Wall Air Conditioner)



  Islandaire EZ Series ED is a replacement for the Singer and McQuay models
of EA, ES and RS units. Our commercial duty construction with heavy gauge
galvanized steel and superior components create an efficient reliable unit.
This design eliminates the need for any interior or exterior renovation. Use of
the existing wall sleeve-cabinet and louver saves time and money, two very
important factors in today's competitive environment! If the need does occur
where the wall sleeve-cabinet front panel and/or louver needs to be replaced,
we manufacture these accessories as well.




FEATURES:

  • Proudly Made in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge
    Galvanized Steel
  • Designed for exact replacement of existing sleeve
    opening
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide
    Superior Heat Transfer
  • Units Available as Cooling only, Cooling with Electric
    Heat, Cooling with Hydronic Heat, or Heat Pumps
  • Custom Options Available
  • Available with State-of-the-Art Digital Intellitemp™
    Control System
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E



Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47^FWB outdoor and 70^F DB/60^FWB indoor. Wattage,Amperage, COP. EER listings include compressor, evaporator motor and condenser fan motor.Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95^F DB/75^FWB outdoor and 80^F DB/67^FWB indoor.

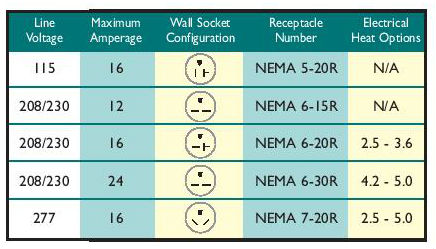

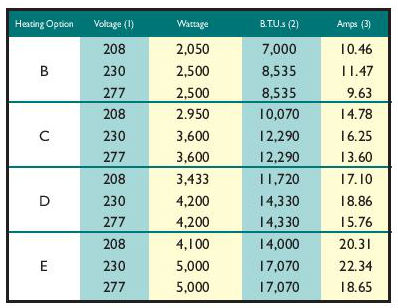

Heat and Line Voltage Options:

islandaire-ez-ed-heating.jpg islandaire-ez-ed-voltage.jpg


(l)Voltage is Single Phase,Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.

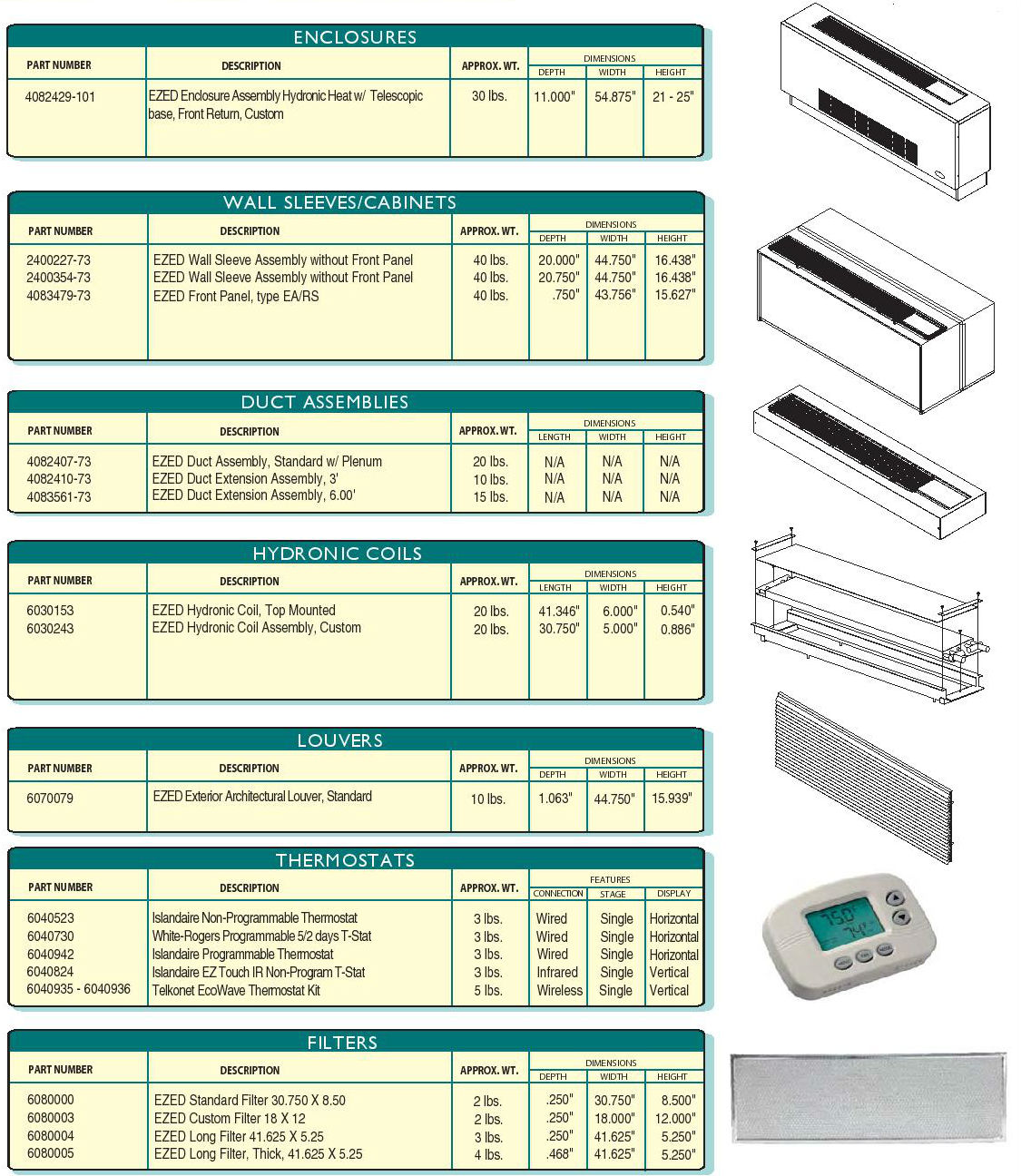

Accessories:
