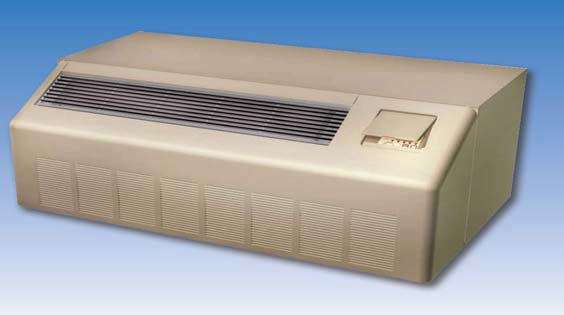

Islandaire EZ Series GS, PTAC (Thru The Wall Air Conditioner)



  Islandaire EZ Series GS is a replacement for the Suburban Dynaline units. Our
commercial duty construction with heavy gauge galvanized steel and superior
components create an efficient reliable unit.This design eliminates the need for any
interior or exterior renovation. Use of the existing wall sleeve-cabinet and louver
saves time and money, two very important factors in today's competitive environment!
If the need does occur where the duct kit sub-base/skirt, wall sleeve-cabinet and/or
louver needs to be replaced, we manufacture these accessories as well. This unit is
also used extensively for new construction projects.

  *Our stainless steel, tubular heat exchanger has a lifetime warranty!

*Standard on every Islandaire gas unit starting 2015 is an integrated
carbon monoxide (CO) detector!







Islandaire EZ Series GS Features:

  • Proudly Made in the U.S.A.
  • CSA listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge
    Galvanized Steel
  • Designed for exact replacement of existing sleeve
    opening
  • Electrically controlled heat surface ignition
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide
    Superior HeatTransfer
  • Units Available as Cooling only, Cooling with Natural
    Gas Heat or L.P. Gas Heat
  • Custom Options Available
  • Available with State-of-the-Art Digital Intellitemp™
    Control System
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-EVOL.II

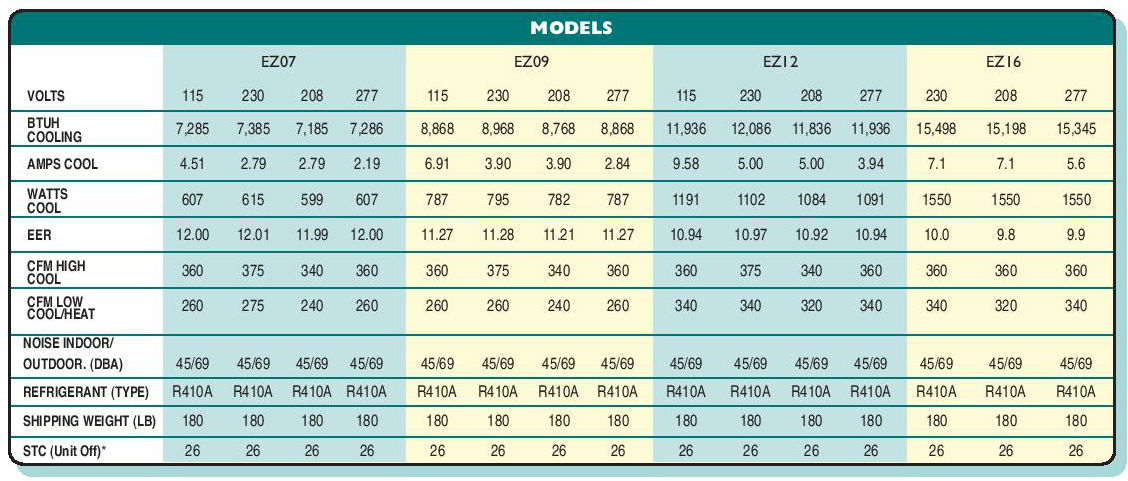

Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47^F WB outdoor and 70^F DB/60^F WB indoor. Wattage, Amperage, COP. EER listings include compressor. evaporator motor and condenser fan motor. Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95^F DB/75~F WB outdoor and 80~F DB/67~F WB indoor

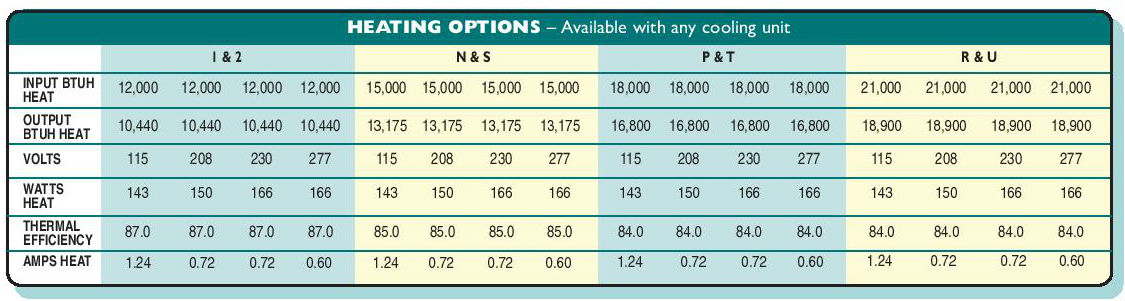

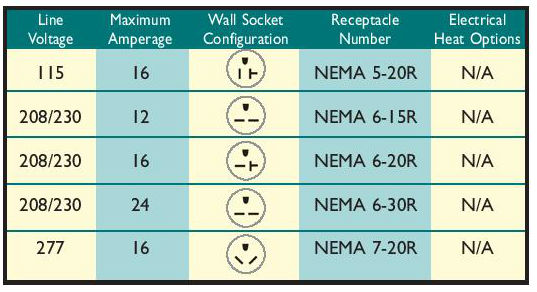

Heat and Line Voltage Options:

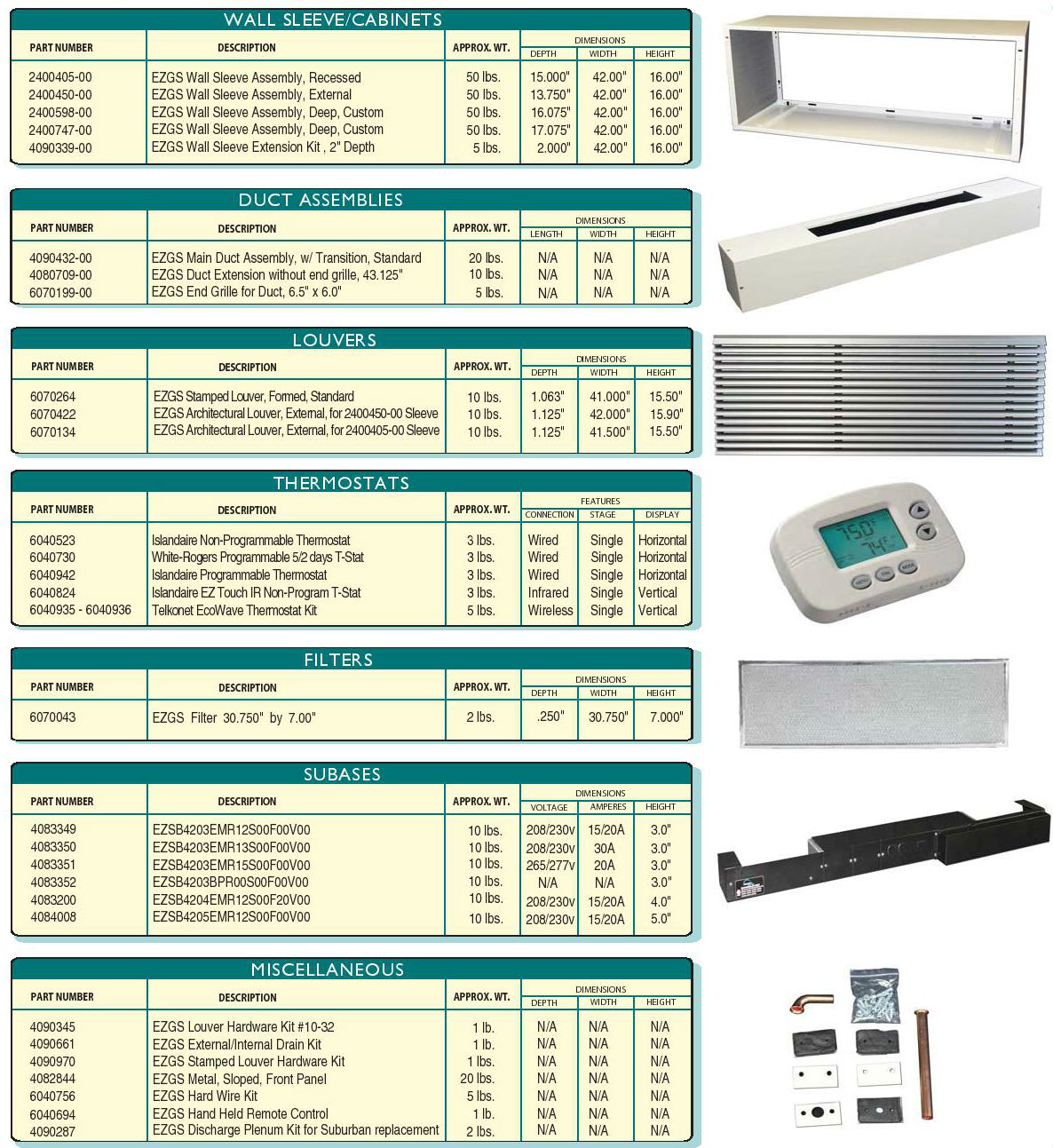

Accessories:
