Islandaire EZ Series JK, PTAC (Thru The Wall Air Conditioner)

  Islandaire EZ Series JK is a replacement for the Slant Fin model of JK upflow
and downflow units. Our commercial duty construction with heavy gauge
galvanized steel and superior components create an efficient reliable unit.
This design eliminates the need for any interior or exterior renovation. Use of
the existing wall sleeve-cabinet and louver saves time and money, two very
important factors in today's competitive environment! Please specify if you are
replacing a unit with electric heat, hydronic heat and/or an upflow or downflow
design, because the room cabinet that comes with each unit is specific to
each. Note: Downflow available in non-heat pump and electronic controls
only.
FEATURES:

  • Proudly Made in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge
    Galvanized Steel
  • Designed for exact replacement of existing sleeve
    opening
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide
    Superior Heat Transfer
  • Units Available as Cooling only, Cooling with Electric
    Heat, Cooling with Hydronic Heat, or Heat Pumps
  • Custom Options Available
  • Available with State-of-the-Art Digital Intellitemp™
    Control System
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E

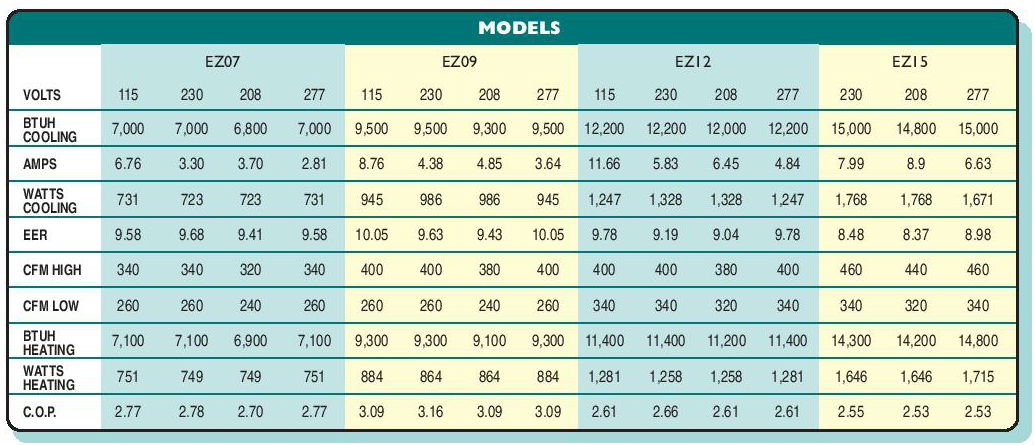

Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47WF WB outdoor and 70WF DB/60WF WB indoor. Wattage, Amperage, COP EER listings include compressor, evaporator motor and condenser fan motor. Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95WF DB/75WF WB outdoor and 80WF DB/67WF WB indoor

Heat and Line Voltage Options:

islandaire-ez-jk-heat.jpg islandaire-ez-jk-volt.jpg


(1) Voltage is Single Phase, Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.

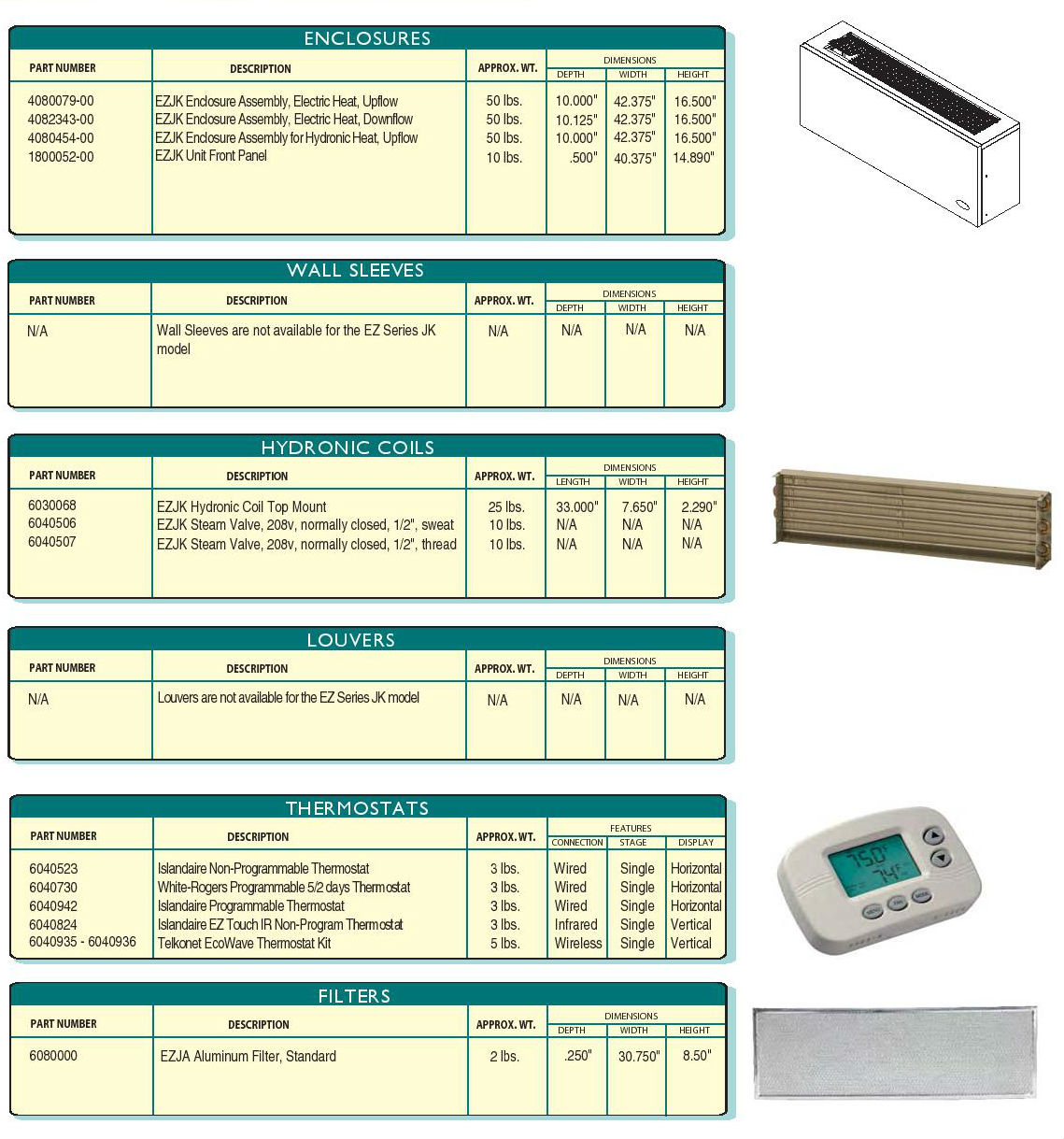

Accessories:
