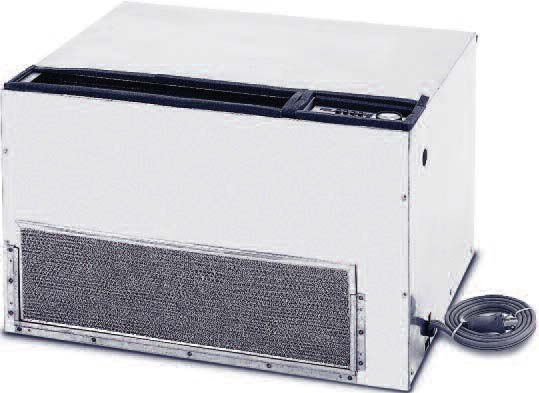

Islandaire EZ Series MX, PTAC (Thru The Wall Air Conditioner)

  Islandaire EZ Series MX is a replacement for the Fedders Maxizone unit. Our
commercial duty construction with heavy gauge galvanized steel and superior
components create an efficient reliable unit.This design eliminates the need for
any interior or exterior renovation. Use of the existing wall sleeve-cabinet
and louver saves time and money, two very important factors in today's competitive
environment! If the need does occur where the wall sleeve-cabinet and/or louver
needs to be replaced, we manufacture these accessories as well. New York MX
units do not come with a built in front enclosure as part of the unit. Separate front
enclosure, wall sleeve and louver are available. Non New York units come with a
built in front enclosure and ducting is available.




FEATURES:

  • Proudly Made in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge
    Galvanized Steel
  • Designed for exact replacement of existing sleeve
    opening
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide
    Superior Heat Transfer
  • Units Available as Cooling only, Cooling with Electric
    Heat, Cooling or with Hydronic Heat
  • Custom Options Available
  • Available with State-of-the-Art Digital Intellitemp™
    Control System
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E

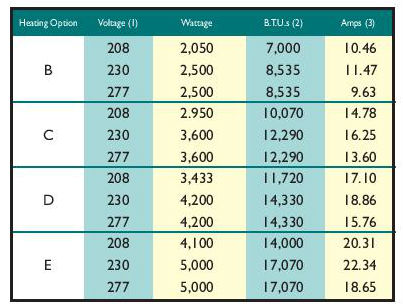

Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47^F WB outdoor and 70^F DB/60^F WB indoor. Wattage, Amperage, COP EER listings include compressor, evaporator motor and condenser fan motor. Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95^F DB/75^F WB outdoor and 80^F DB/67^F WB indoor.

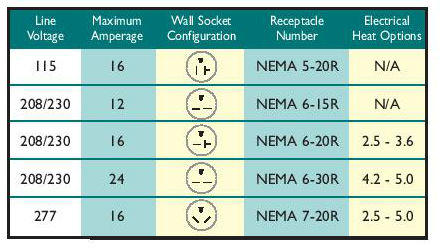

Heat and Line Voltage Options:


(1) Voltage is Single Phase, Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.

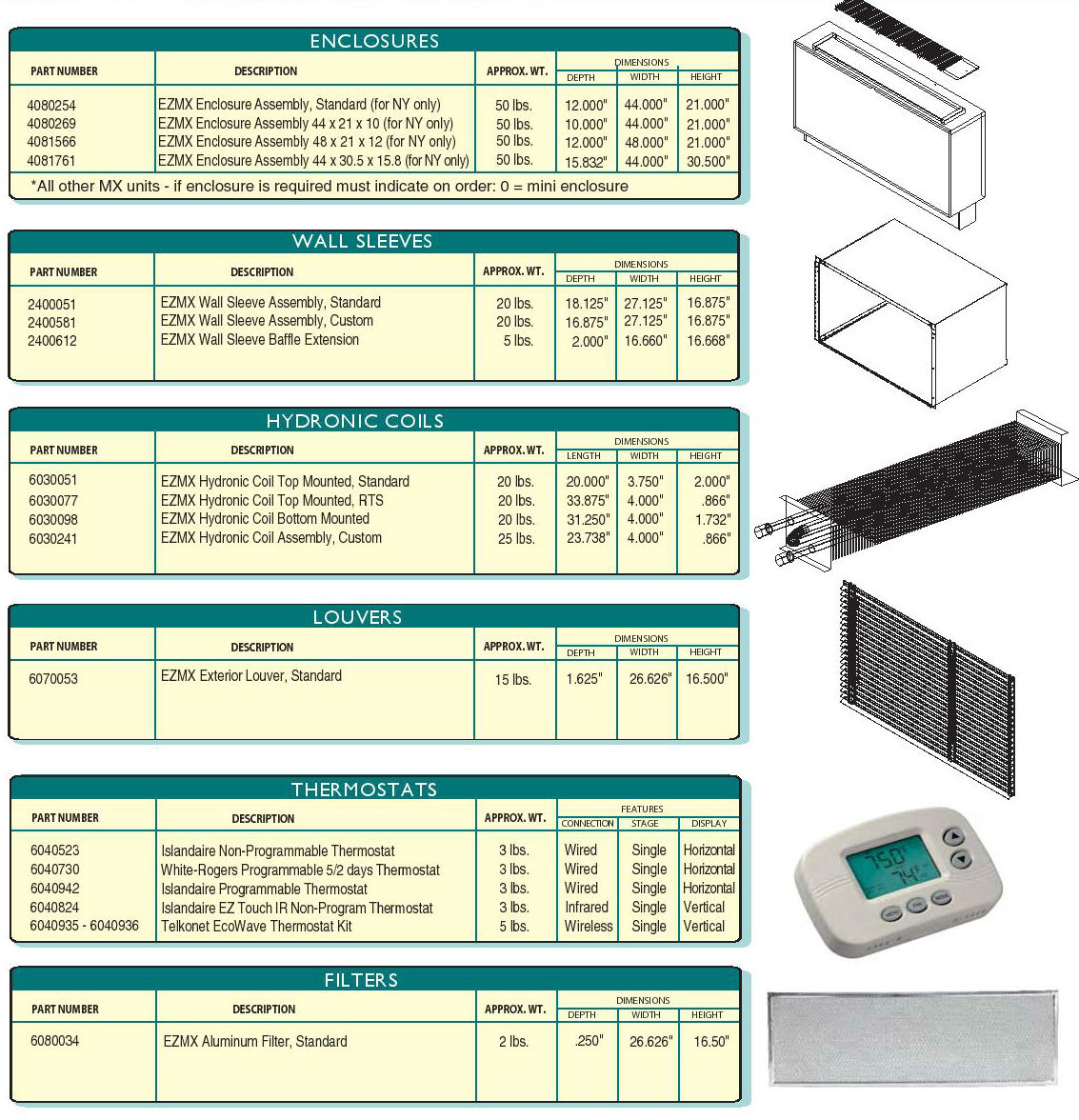

Accessories:
