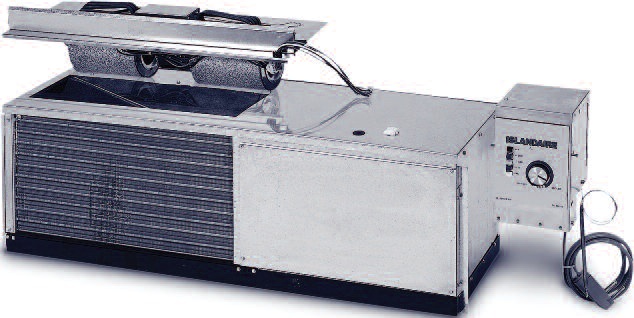

Islandaire EZ Series N3, PTAC (Thru The Wall Air Conditioner)

  Islandaire EZ Series N3 is a replacement for the Dunham Bush Newport III & IV
units. Our commercial duty construction with heavy gauge galvanized steel and
superior components create an efficient reliable unit. This design eliminates the
need for any interior or exterior renovation. Use of the existing wall sleeve-
cabinet and louver saves time and money, two very important factors in today's

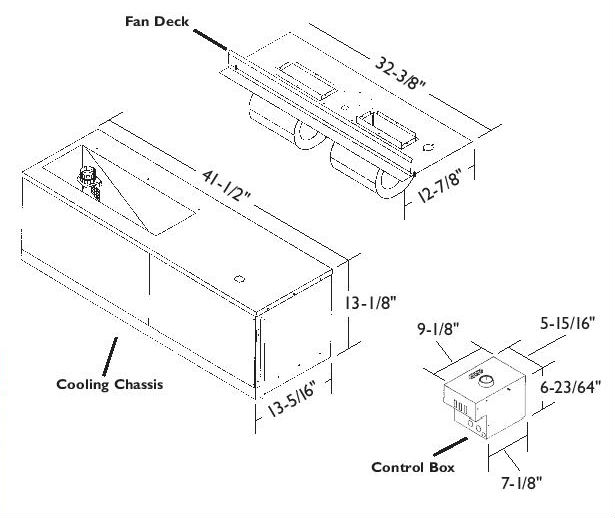

competitive environment! Must replace cooling chassis, fan deck and control box.




FEATURES:

  • Proudly Made in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge
    Galvanized Steel
  • Designed for exact replacement of existing sleeve
    opening
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide
    Superior Heat Transfer
  • Units Available as Cooling only, Cooling with Electric
    Heat, Cooling with Hydronic Heat, or Heat Pumps
  • Custom Options Available
  • Available with State-of-the-Art Digital Intellitemp™
    Control System
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E

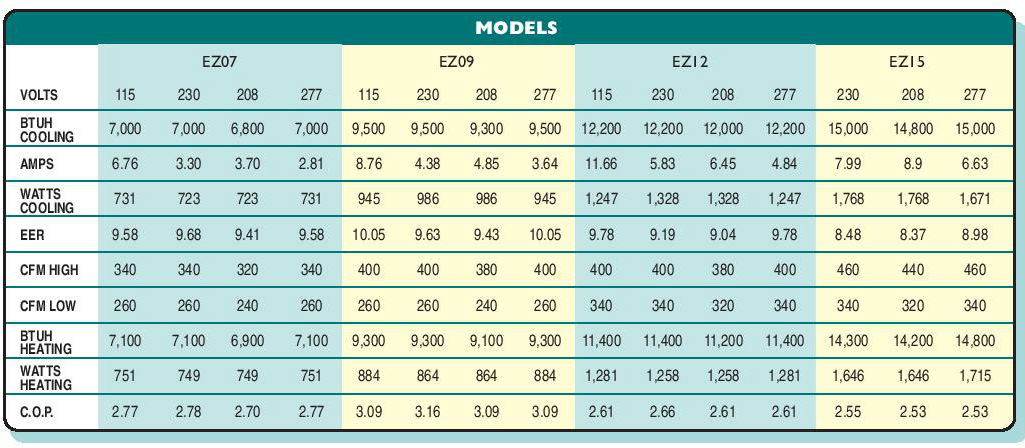

Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47MF WB outdoor and 70MF DB/60MF WB indoor. Wattage, Amperage, COP. EER listings include compressor, evaporator motor and condenser fan motor. Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95MF DB/75MF WB outdoor and 80MF DB/67MF WB indoor.

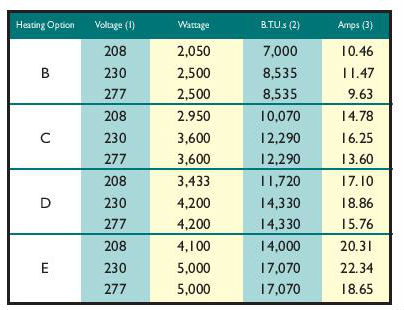

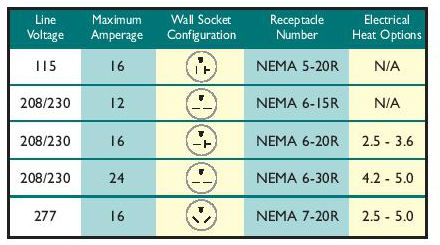

Heat and Line Voltage Options:

islandaire-ez-n3-heat.jpg islandaire-ez-n3-vol.jpg


(1) Voltage is Single Phase. Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.
