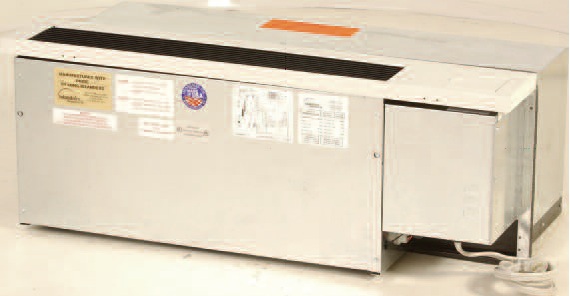

Islandaire EZ Series NE, PTAC (Thru The Wall Air Conditioner)
|Islandaire EZ Series NE is a replacement for the McQuay N Series units. Our
commercial duty construction with heavy gauge galvanized steel and superior
components create an efficient reliable unit. This design eliminates the need for
any interior or exterior renovation. Use of the existing wall sleeve-cabinet and
louver saves time and money, two very important factors in today's competitive
environment! If the need does occur where the wall sleeve- cabinet and/or louver
needs to be replaced, we manufacture these accessories as well.

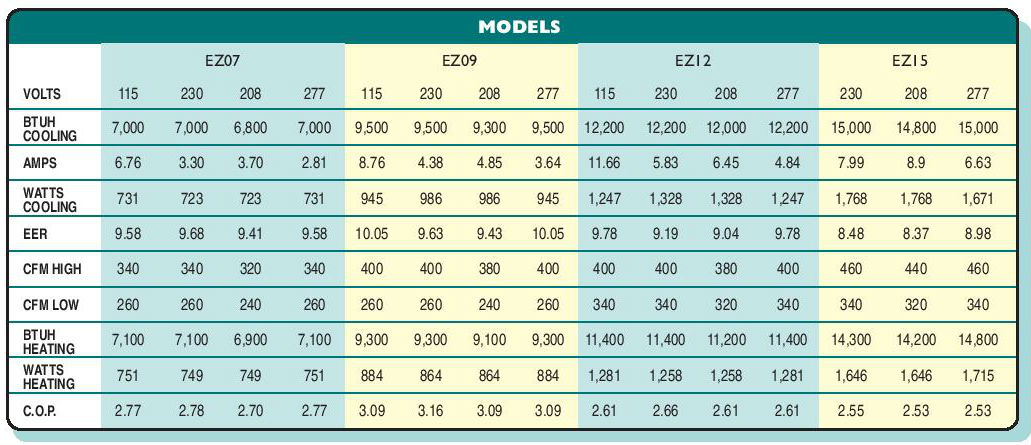

Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47MF WB outdoor and 70MF DB/60MF WB indoor. Wattage, Amperage, COP. EER listings include compressor, evaporator motor and condenser fan motor. Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95MF DB/75MF WB outdoor and 80MF DB/67MF WB indoor.

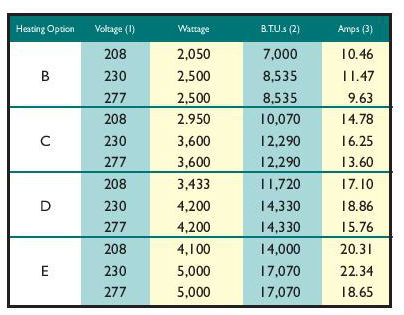

Heat and Line Voltage Options:
(1) Voltage is Single Phase, Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.
