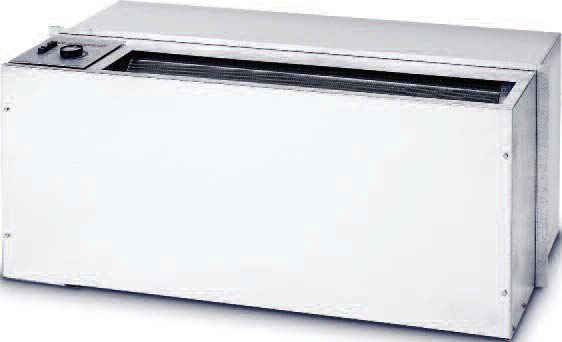

Islandaire EZ Series RM, PTAC (Thru The Wall Air Conditioner)



  Islandaire EZ Series RM is a replacement for the Embassy Weathertwin, TPI
Ra-Matic, Ice Cap, Ice Air, Simonaire, Cool Heat and Zoneaire models of RM
and SC units. Our commercial duty construction with heavy gauge galvanized
steel and superior components create an efficient reliable unit. This design
eliminates the need for any interior or exterior renovation. Use of the existing
wall sleeve-cabinet and louver saves time and money, two very important
factors in today's competitive environment! If the need does occur where the
wall sleeve-cabinet, hydronic coil and/or louver needs to be replaced, we
manufacture these accessories as well. When ordering a sloped RM unit,
a new custom room cabinet must be ordered. Consult your factory contact
for pricing.

Ice Air and SimonAire units are manufactured in China.

This model is manufactured locally on Long Island, NY.

Support Made in the USA! Support Made in New York!





FEATURES:

  • Proudly Made in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge
    Galvanized Steel
  • Designed for exact replacement of existing sleeve
    opening
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide
    Superior Heat Transfer
  • Units Available as Cooling only, Cooling with Electric
    Heat, Cooling with Hydronic Heat, or Heat Pumps
  • Custom Options Available
  • Available with State-of-the-Art Digital Intellitemp™
    Control System
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E

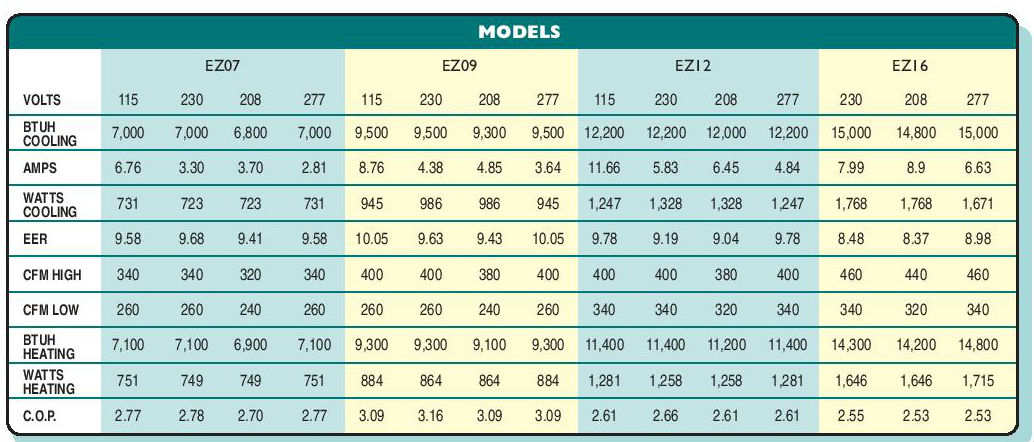

Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47MF WB outdoor and 70MF DB/60MF WB indoor. Wattage, Amperage, COP. EER listings include compressor, evaporator motor and condenser fan motor. Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95MF DB/75MF WB outdoor and 80MF DB/67MF WB indoor.

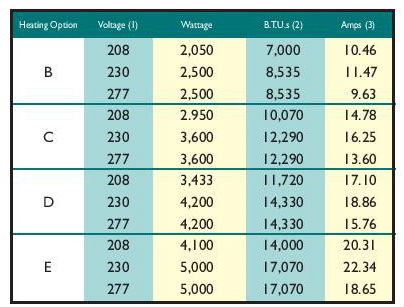

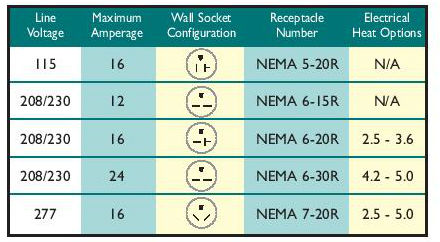

Heat and Line Voltage Options:

islandaire-ez-rm-heat.jpg islandaire-ez-rm-vol.jpg


(1) Voltage is Single Phase, Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.

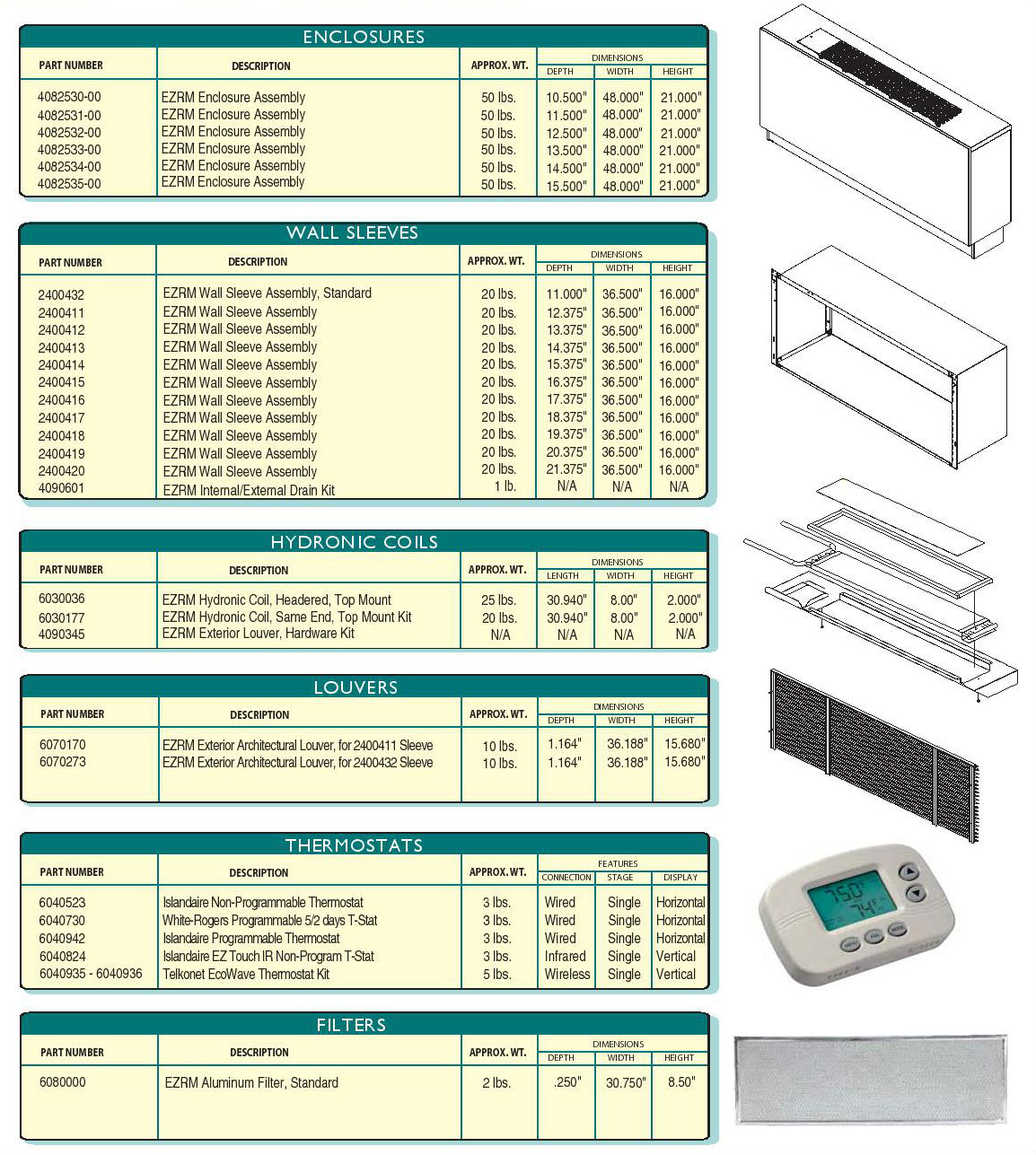

Accessories:

    There are no products in this category.
