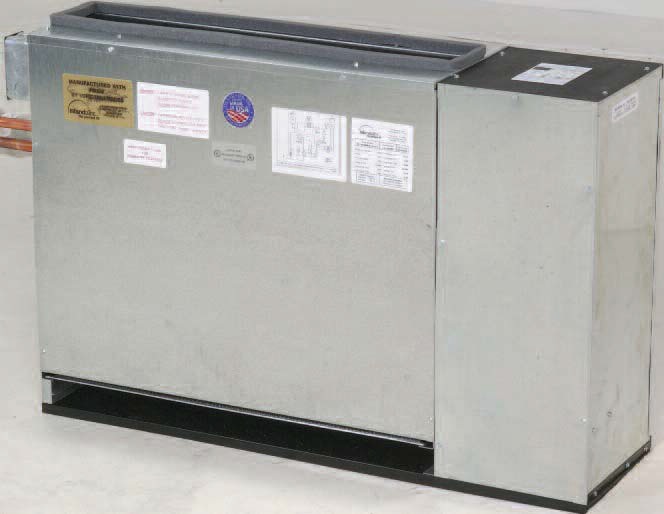

Islandaire EZ Series WM, PTAC (Thru The Wall Air Conditioner)

  Islandaire "The Perfect Fit” units are designed to exactly replace the original,
existing chassis! No field modification kits or builder renovations are required.
Islandaire units are designed for optimal efficiency and reliability. This unit has the
ability to have the piping and the controls “reversed” in the field. If you order the
wrong side for piping and controls, no problem. Just reverse them in the field
saving time and money./This appliance is intended for new construction or

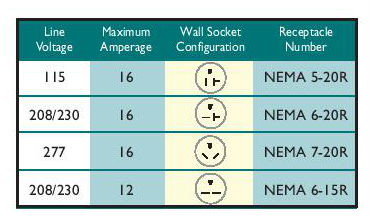

replacement of McQuay and Singer water source heat pumps. Please confirm that
the electrical rating of this appliance matches the electrical supply available before
beginning installation.



Features on the EZ Series WM:

  • Proudly made in the U.S.A

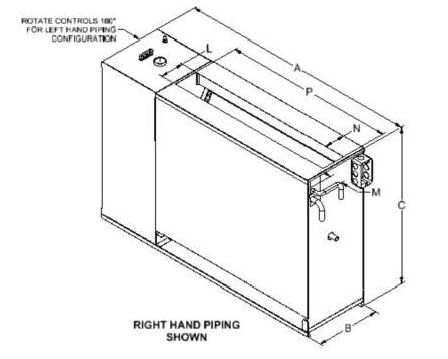

  • Left hand piped, right hand controls, but can be
    field reversed
  • Superior energy efficient ratios (EER)
  • High efficiency coaxial condenser coil
  • High efficiency evaporator coil
  • Commercial duty construction with heavy gauge
    galvanized steel
  • High pressure protection
  • Compressor and water circuit freeze protection
  • Refrigerant circuit access ports

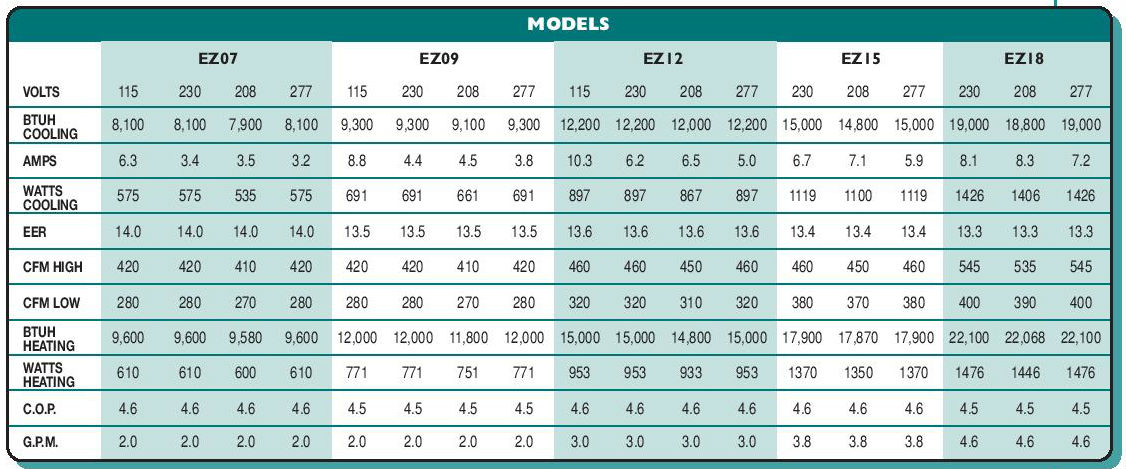

Note:

1) Data based on AHRI/ASHRAE/ISO 13256-1

Cooling -
  • EAT-80.6 degrees F DB\66.2 degrees F WB
  • EWT-86 degrees F
Heating -
  • EAT-68 degrees F
  • EWT-68 degrees F
2) Water Loop Operation
