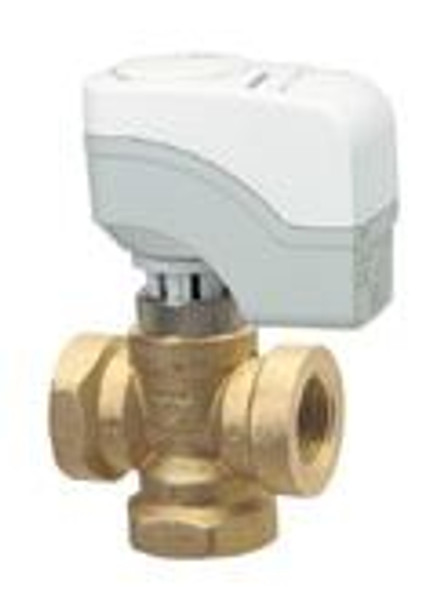

Siemens 244-00230, Zone valve, 3-way, 1/2", 1.0 Cv, NPT w/ 24V floating NSR actuator

$174.58
SKU:
244-00230
Availability:
Usually ships in 3 to 7 business days
Weight:
2.09 LBS
Shipping:
Calculated at Checkout
Siemens 244-00230, Zone valve, 3-way, 1/2", 10 CV, NPT w/ 24V floating NSR actuator

Product Overview

Siemens 244-00230, Zone valve, 3-way, 1/2, 1.0 CV, NPT w/ 24V floating NSR actuator

Item Specifications

  • AssemblyY
  • Assembly Valve599-00230
  • Assembly ActuatorSSA81U
  • Valve Size0.5
  • Valve TypeZone
  • Valve Pattern3-Way Diverting
  • Valve Cv/GPM1
  • Body Rating125
  • Rated Close-off44
  • Max Temp230
  • TrimBrass
  • Actuator TypeNon-Spring Return
  • Fail-safe PositionN/A
  • Control Signal Type3-Position
  • Nominal Voltage24
  • NEMA Rating1
  • Aux Switches0
  • FeedbackN/A
  • Damper Actuator TorqueN/A
  • Scalable Control SignalN/A
  • Plenum RatingN/A
  • Damper Actuation ApplicationN/A
  • Cable LengthN/A
  • Damper Actuation StyleN/A
  • Pneumatic Connection
  • COOUS
  • EAN/UPCNone
  • Harmonized Tariff Code848180020
  • Embargo IndicatorEAR99
  • RohsUnDec
